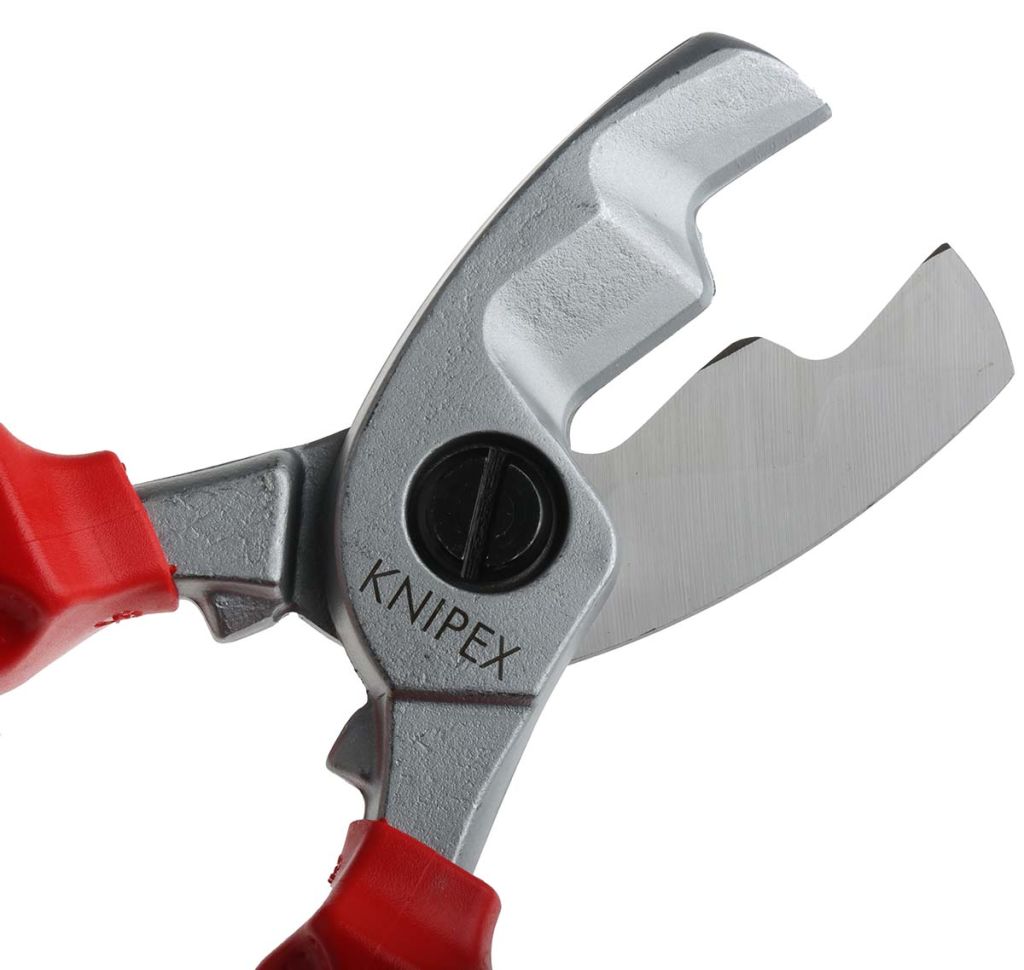

Knipex VDE/1000V Insulated 200 mm Cable Shears
- RS Stock No.:
- 2222606
- Mfr. Prt No.:
- 95 16 200
- Brand:
- Knipex
Legislation and Compliance
RoHS Status: Not Applicable
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
| RS stock number | 2222606 |
| Product description | Knipex VDE/1000V Insulated 200 mm Cable Shears |
| Manufacturer / Brand | Knipex |
| Manufacturer part number | 95 16 200 |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Nov 24, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Product Details
VDE Twin Edge Cable Shears
1000V VDE-tested twin-edge cutters for copper and aluminium cables, single and multiple conductors. Separate initial and final cut positions on blades allows two-stage cutting of cables up to 20mm in diameter.
Note
Not suitable for steel wire and hard drawn copper conductors.
APPROVALS : VDE
Precision ground, hardened dual-cut blades
Clean and smooth cutting action without crushing or deformation
Easy cutting with one-hand operation, with guard
Adjustable screw joint, self-locking
Forged special tool steel construction, oil-hardened and tempered
Head chrome plated, handles insulated with two-colour dual-component sleeves
Reduced hand-force due to new blade geometry and good leverage ratio
Cutting capacity 20 mm dia. / 70 mm²
Specifications
| Attribute | Value |
| Brand | Knipex |
| Overall Length | 200 mm |
| Type | Cable Shears |
| VDE/1000V Approved | Yes |
| Maximum Cutting Capacity | 20.0 mm |
