RS PRO Temperature Label Indicator, 50°C to 100°C, 11 Levels
- RS Stock No.:
- 9064609
- Brand:
- RS PRO
Legislation and Compliance
RoHS Certificate of Compliance
EU Directives 2011/65/EU and 2015/863 restrict the use of the 10 substances below in the manufacture of specified types of electrical equipment.
Whilst this restriction does not legally apply to components, it is recognised that component “compliance” is relevant to many customers.
RS definition of RoHS Compliance:
- The product does not contain any of the restricted substances in concentrations and applications banned by the Directive,
- and for components, the product is capable of being worked on at the higher temperatures required by lead–free soldering
The restricted substances and maximum allowed concentrations in the homogenous material are, by weight:
| Substance | Concentration |
| Lead | 0.1% |
| Mercury | 0.1% |
| PBB (Polybrominated Biphenyls) | 0.1% |
| PBDE ( Polybrominated Diphenyl Ethers) | 0.1% |
| Hexavalent Chromium | 0.1% |
| Cadmium | 0.01% |
| DEHP (Bis (2-Ethylhexl) phthalate) | 0.1% |
| BBP (Benzyl butyl phthalate) | 0.1% |
| DBP (Dibutyl phthalate) | 0.1% |
| DIBP (Diisobutyl phthalate) | 0.1% |
The supplier of the item listed below has informed RS Components that the product is "RoHS Compliant".
RS Components has taken all reasonable steps to confirm this statement. Information relates only to products sold on or after the date of this certificate.
| RS stock number | 9064609 |
| Product description | RS PRO Temperature Label Indicator, 50°C to 100°C, 11 Levels |
| Manufacturer / Brand | RS PRO |
RS Components Ltd, Birchington Road, Corby, Northants, NN17 9RS, UK
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
| RS stock number | 9064609 |
| Product description | RS PRO Temperature Label Indicator, 50°C to 100°C, 11 Levels |
| Manufacturer / Brand | RS PRO |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Nov 24, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Country of Origin: GB
Product Details

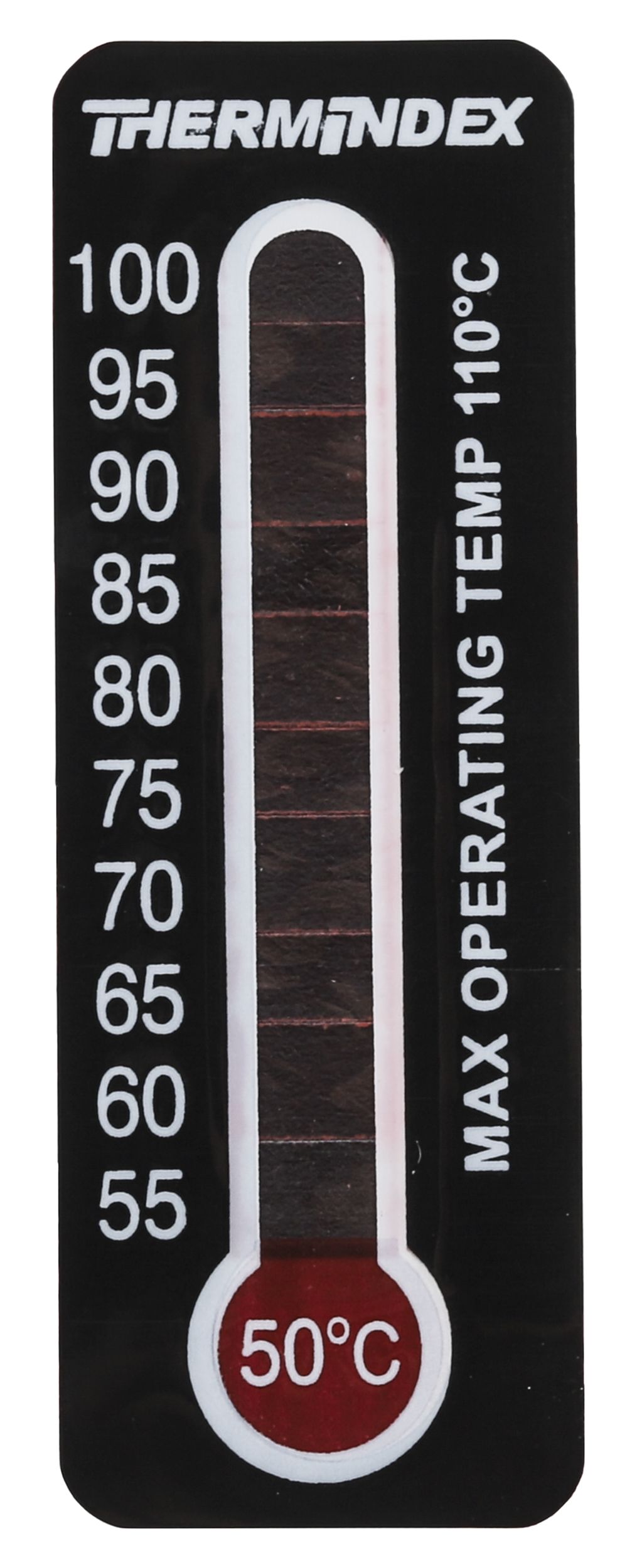

RS PRO Vertical temperature label indicator
From RS PRO, comes a range of great value vertical temperature label indicators. This range of easy to read temperature indicators are designed to be self-adhesive and provide the current temperature with an accuracy of +/- 1°C. They are also ideal for ensuring that overheating is not taking place during preventative maintenance checks.
Features and benefits:
- The surface is manufactured from 50-micron clear polyester
- Correct temperature readings in 2 to 3 minutes
- The modified acrylic adhesive is suitable for most surfaces
- (9064609) reads temperatures between 50 °C and 100°C. (9064599) reads temperatures between 0°C and 50°C.
Application
Temperature indicators have a range of applications such as;
- Industrial
- Automotive
- Production lines
- Research & development
Why choose RS PRO?
RS PRO is our own brand of high-quality products whilst bringing you great value for money. Our wide range of products have been engineered to meet high industry standards, so you are ensured reliable and robust solutions.
Specifications
| Attribute | Value |
| Brand | RS PRO |
| Minimum Temperature Sensitivity | 50 °C |
| Number of Temperature Levels | 11 |
| Reversibility | Yes |
| Orientation | Vertical |
| Label Length | 51 mm |
| Label Width | 18 mm |

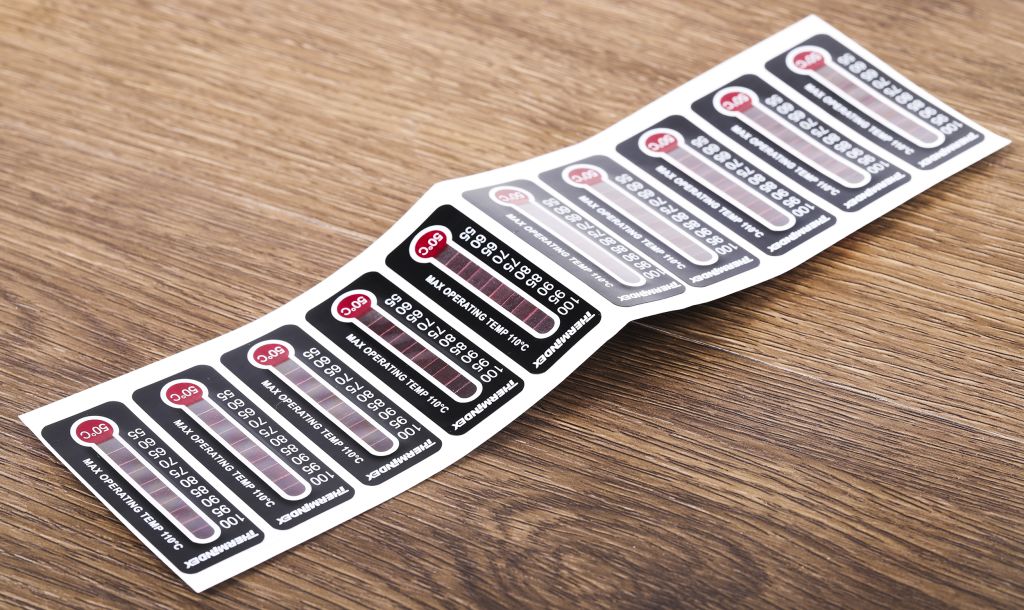

| Labels Per Product | 10 |
| Maximum Temperature Sensitivity | 100 °C |
