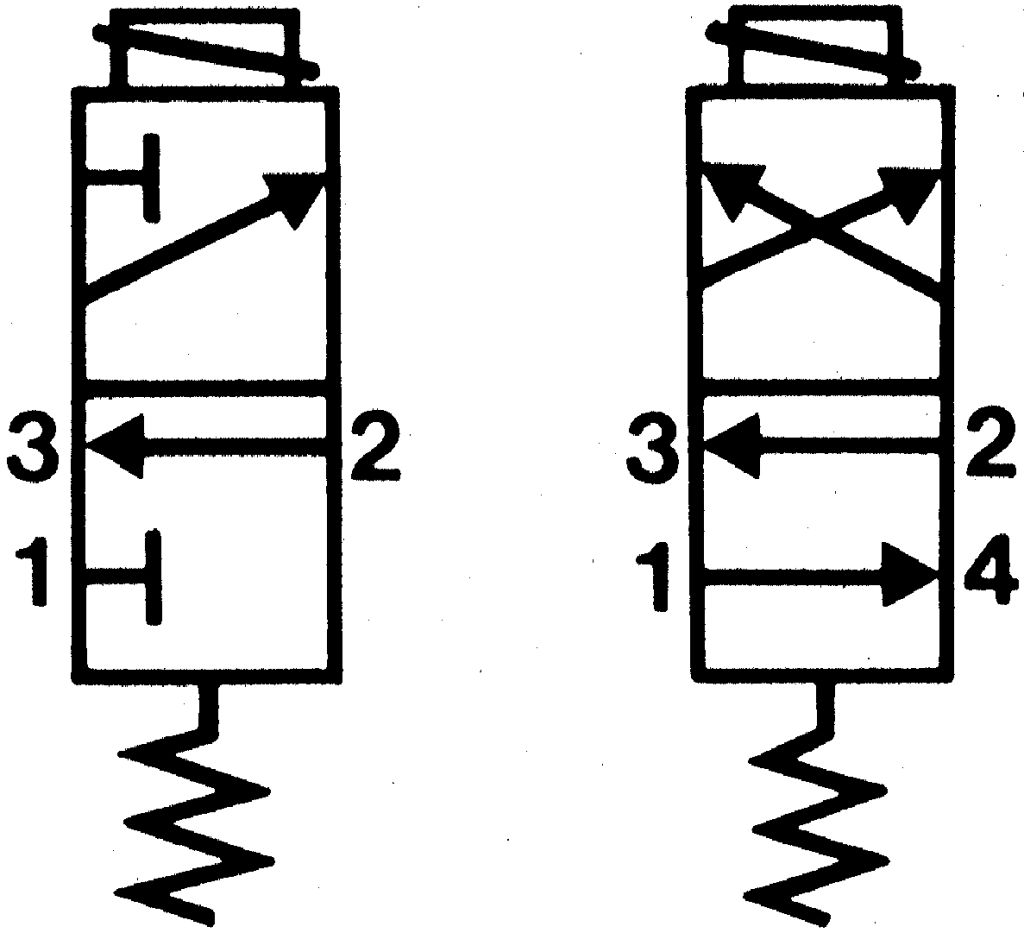

Crouzet 3/2 Pneumatic Solenoid Valve – Pilot/Spring 81 Series
- RS Stock No.:
- 0722845
- Mfr. Prt No.:
- 81513100
- Brand:
- Crouzet
Legislation and Compliance
RoHS Status: Not Applicable
Statement of Conformity
RS Components
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
Compliant Product Details
| RS stock number | 0722845 |
| Product description | Crouzet 3/2 Pneumatic Solenoid Valve - Pilot/Spring 81 Series |
| Manufacturer / Brand | Crouzet |
| Manufacturer part number | 81513100 |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Nov 23, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Country of Origin: FR
Product Details
Specifications
| Attribute | Value |
| Brand | Crouzet |
| Function | 3/2 |
| Minimum Operating Temperature | -10 °C |
| Maximum Flow Rate | 300 NL/min |
| Maximum Operating Temperature | +50 °C |
| Manufacturer Series | 81 |
| Mounting Style | DIN Rail |
| Maximum Operating Pressure | 8 bar |
| Minimum Operating Pressure | 3 bar |
| Actuation Type | Pilot/Spring |
| Number of Ports | 3/2 |
