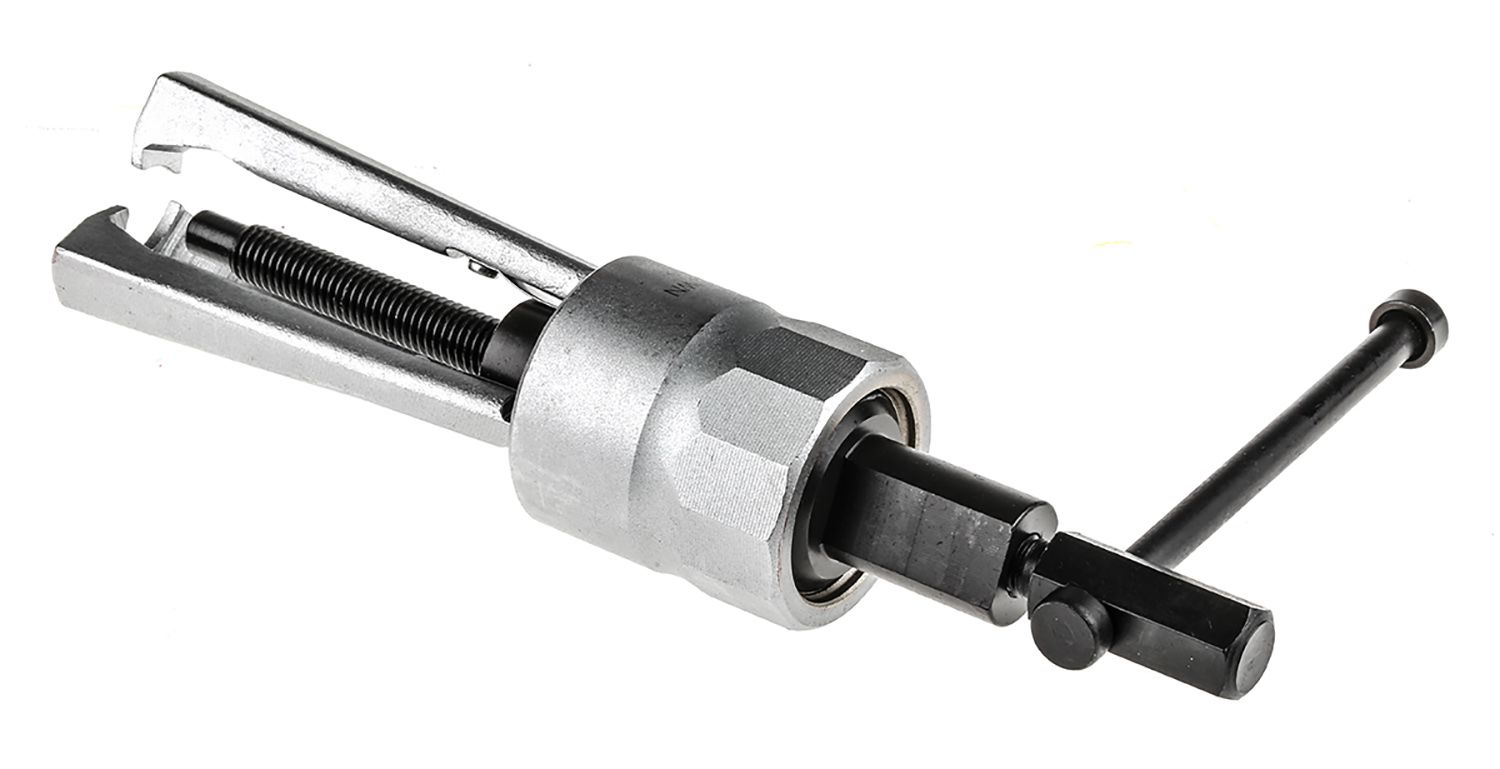

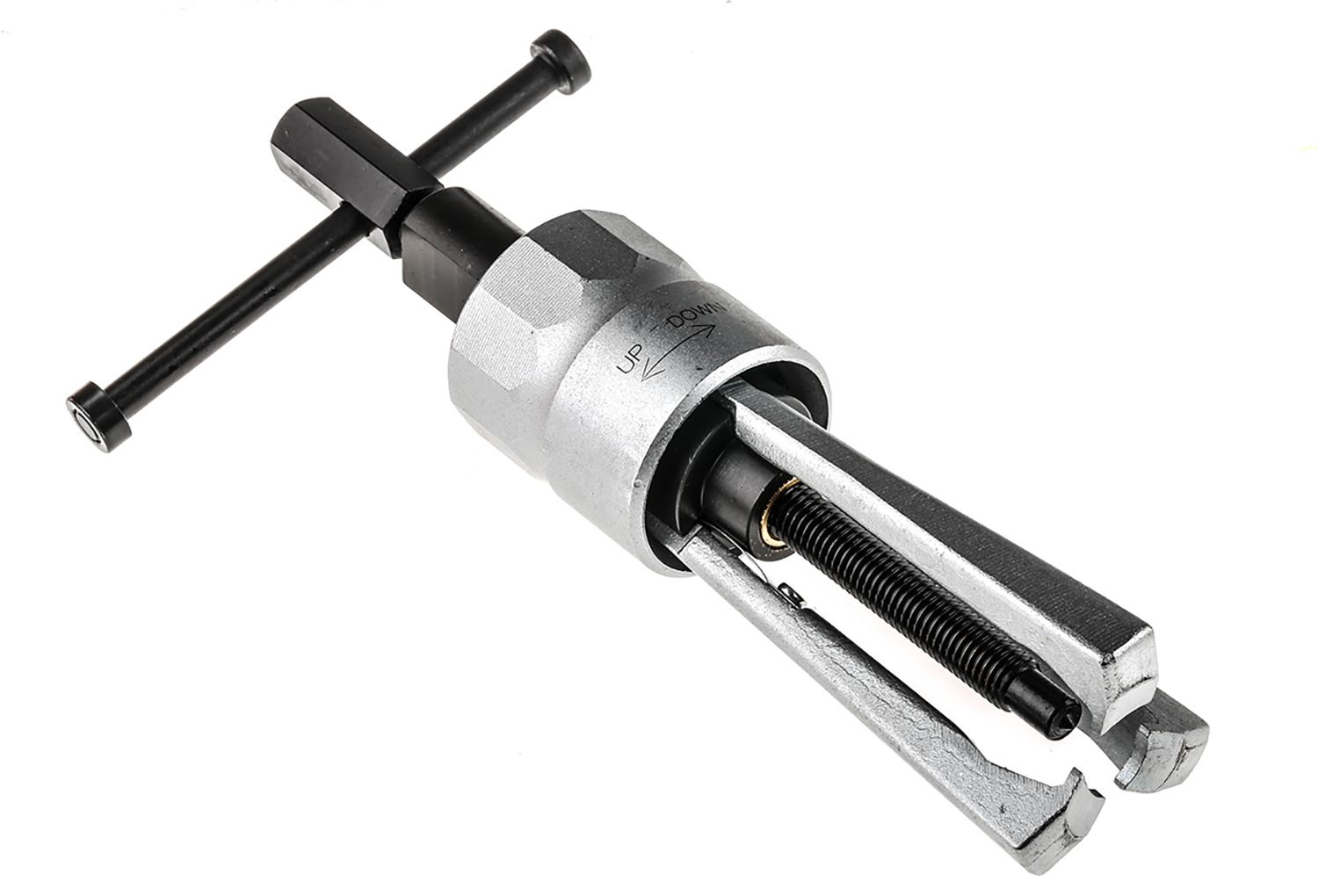

RS PRO Micro Bearing Puller

These Bearing Pullers from our own RS PRO own brand are manufactured to a very high specification and subjected to rigorous testing which is exceeding their stated capacities.

The legs and beams are drop forged from high-quality steel and then heat-treated for extra strength and durability.

What to consider when choosing a bearing puller for your job?

When choosing the right puller for the job, consider using a 3 leg puller if possible - this will give you better load distribution and is a lot safer in use.

Spread of bearing puller? It is determined by the width of the part to be pulled.
Reach of bearing puller? It must be at least equal to or larger than the depth of the part that you need to remove.
Force of bearing puller? If you removing rusted parts or where there is a large area of surface contact, a greater force will be required. Consider choosing a puller which force screw diameter is at least half the size of the shaft on the item that you need to remove. Still not sure which puller to choose? Use the next largest simply because undersized bearing puller will slow down the job and nobody has time for that.

Features and Benefits

• 3 jaws
• Maximum size of bearing - 45mm
• Arm spread - 19 to 45mm
• Reach - 73mm
• Self-centring force screw with 'T' bar and 13mm hexagon drive
• Drop forged legs with independent leaf springs
• Securing collar tightens under load for positive, non-slip pulling action
• 1-tonne capacity

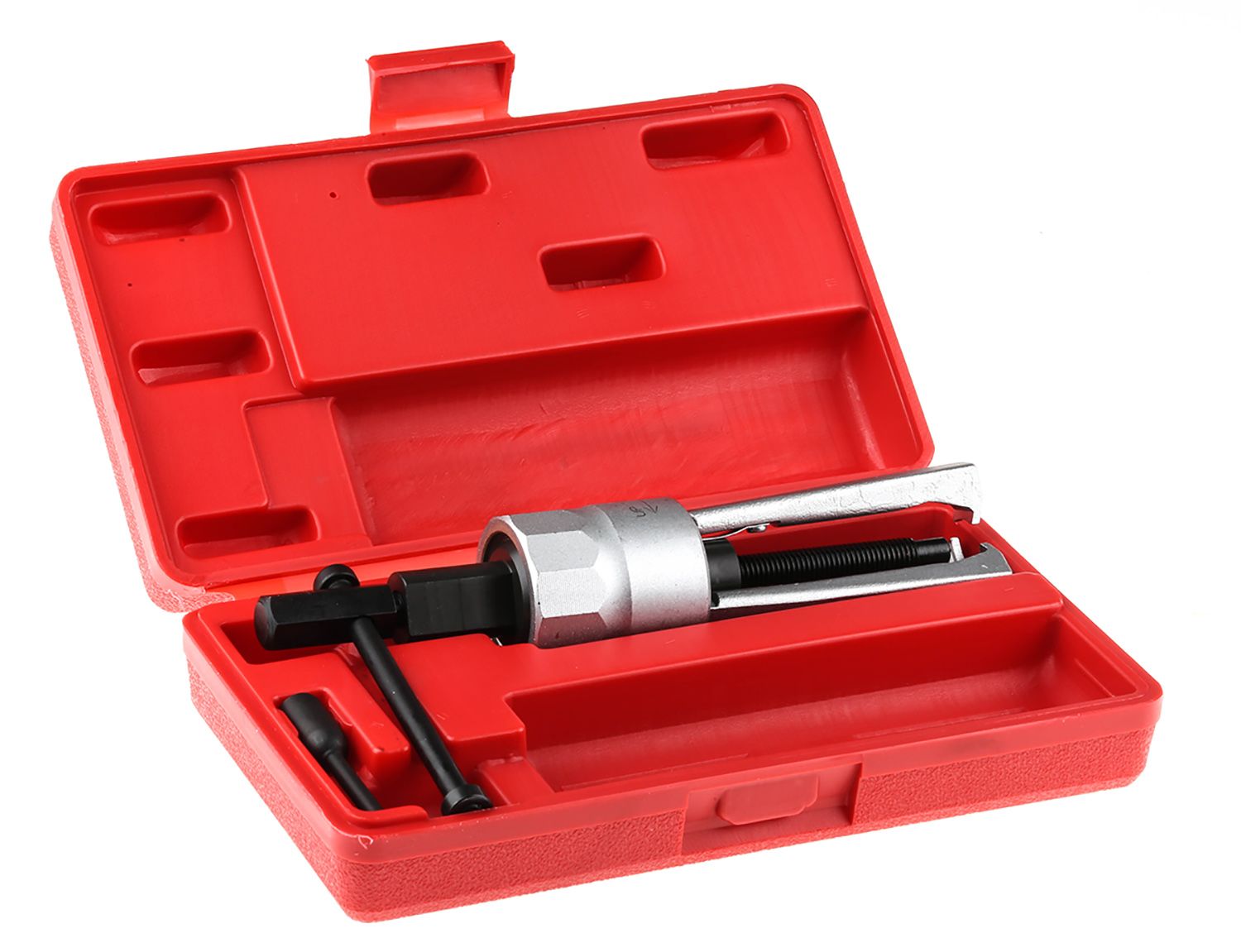

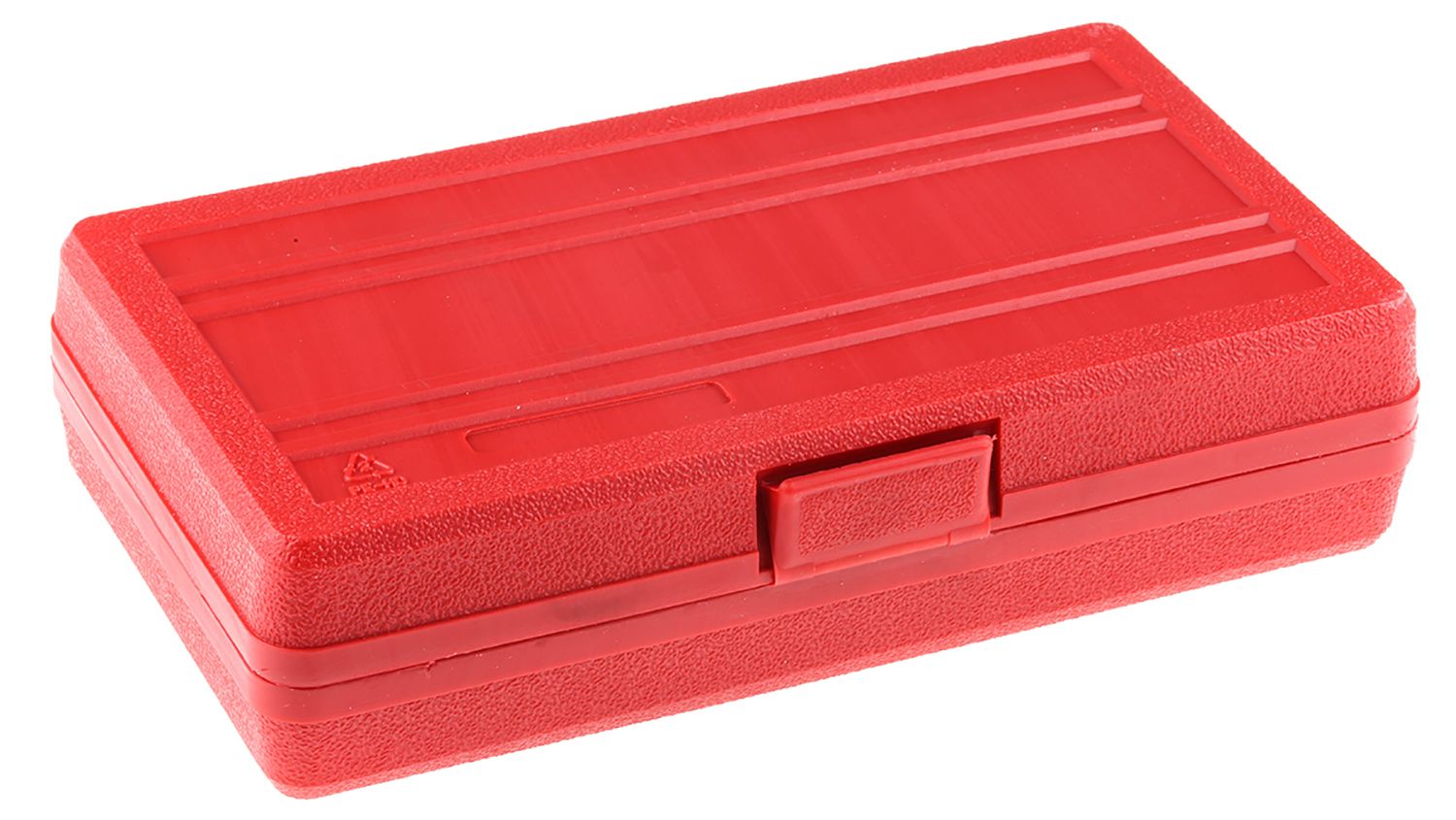

• Comes with extension point in a strong blow moulded case

Where will you need this bearing puller?

Automotive and engineering applications such as:
• Alternators
• Generators
• Domestic appliances
• Power tools and pumps
