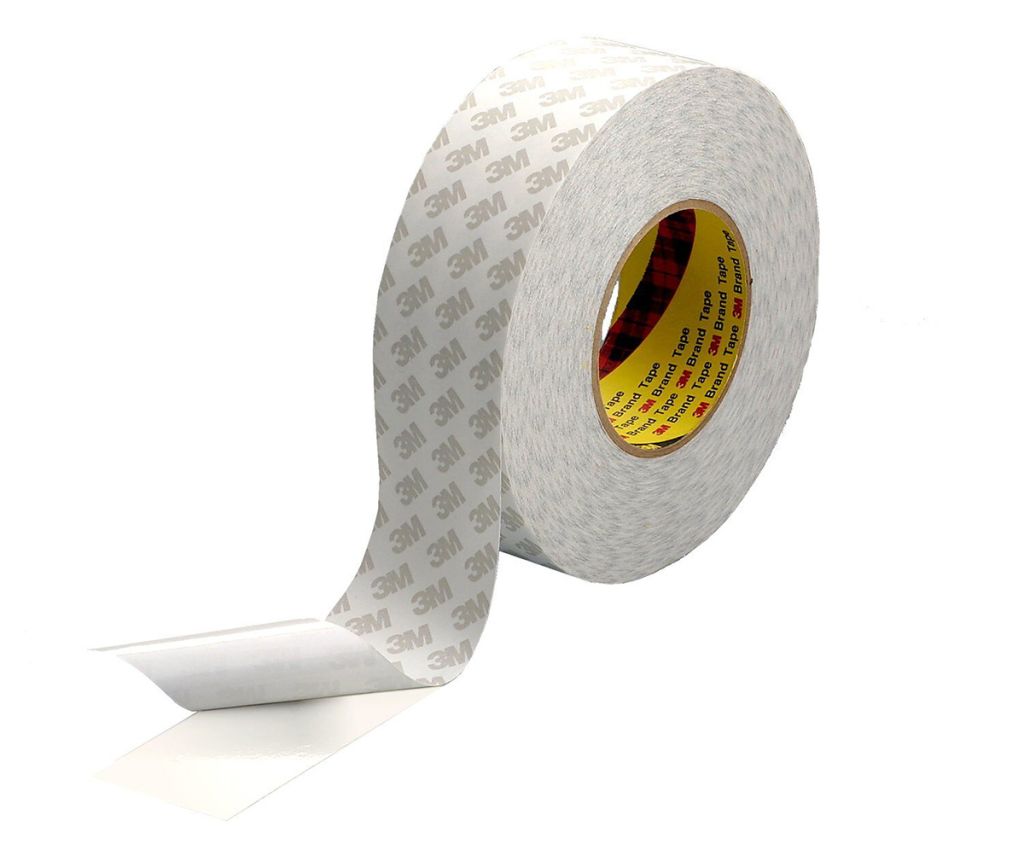

3M 9080HL White Double Sided Paper Tape, 25mm x 50m
- RS Stock No.:
- 4587129
- Mfr. Prt No.:
- 9080 TIS 25MMX50M
- Brand:
- 3M
Legislation and Compliance
RoHS Status: Not Applicable
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
| RS stock number | 4587129 |
| Product description | 3M 9080HL White Double Sided Paper Tape, 25mm x 50m |
| Manufacturer / Brand | 3M |
| Manufacturer part number | 9080 TIS 25MMX50M |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Dec 26, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Country of Origin: KR
Product Details
3M™ Double Coated Tape 9080HL 25mm X 50m
Introducing 3M™ 9080HL is a specially designed double-sided tape featuring a high adhesive strength non-woven tape. This tape has the ability for low and high-speed joining to a variety of materials such as wood, metal, glass, papers, paints and fabrics. It's constructed with this adhesive either side of a poly-coated paper liner.
High Initial Tack
Featuring a quick and mess-free application, the tape uses a low energy adhesive that has been formulated for very high adhesion. This has been rigorously tested to underpin these qualities as 3M are a brand with a lot of integrity and passion to supply some of the best tapes on the market. The high-performance adhesive is great for use on a variety of surfaces with the right preparation.
Features and Benefits
General purpose, double-sided poly-coated coated paper carrier
High tack, high initial adhesion
Easy to remove the liner
Economy tape
Ideal tape application temperature range is 16°C to38°C
Typical Applications
Double-Sided Plastic tapes are primarily used for:
Bonding and mounting of boards and displays
Fixing of decorative trims and emblems
Self-adhesive mounting of furniture trim, sealing profiles and cable ducts
FAQ's
What is the shelf life of this tape?
Its recommended that this tape retains its performance and properties for 24 months after dispatch from the manufacturer.
Specifications
| Attribute | Value |
| Brand | 3M |
| Maximum Operating Temperature | +120 °C |
| Adhesive Material | Acrylic |
| Thickness | 0.16 mm |
| Backing Material | Paper |
| Width | 25 mm |
| Tape Type | Paper Tape |
| Minimum Operating Temperature | -30 °C |
| Adhesion Strength | 7.5 N/cm |
| Length | 50 m |
| Colour | White |
| Model Number | 9080HL |
