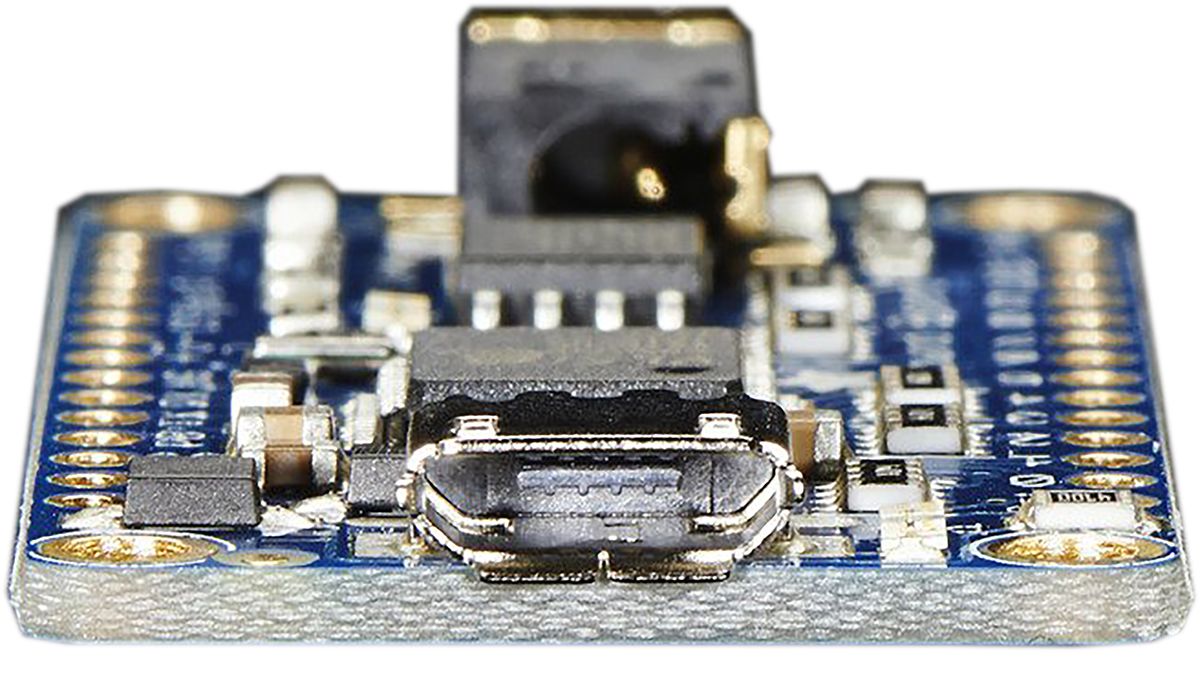

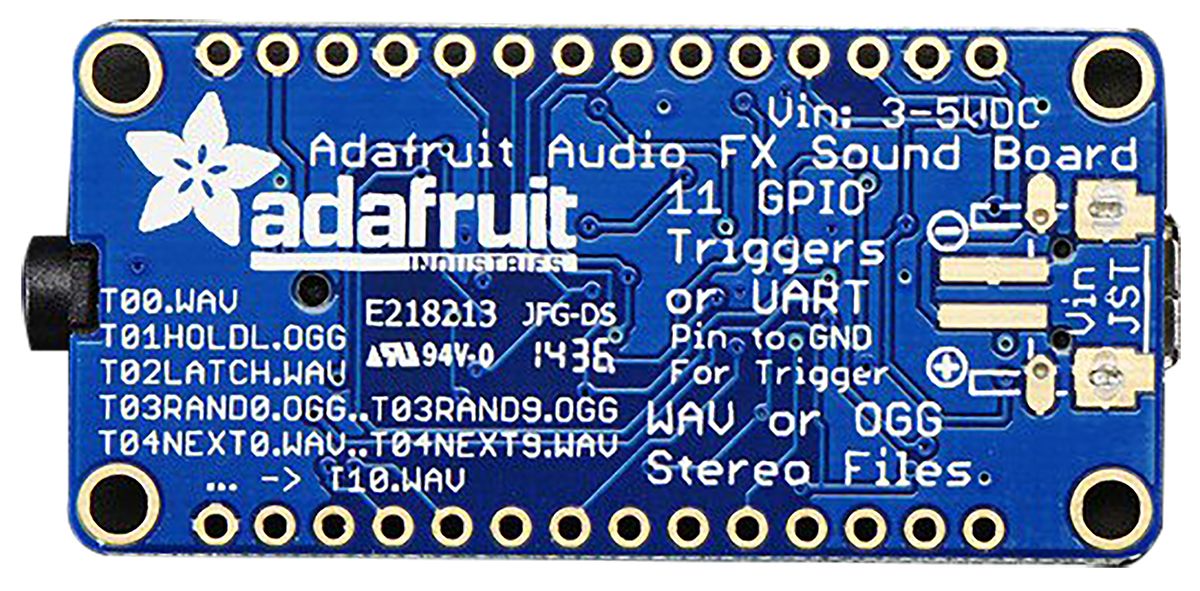

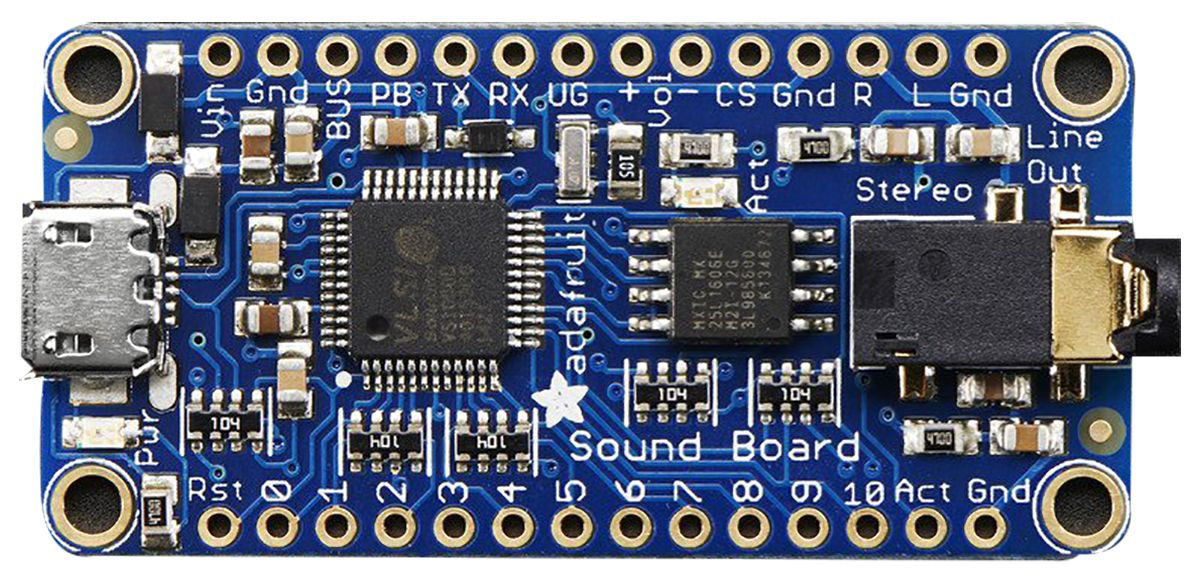

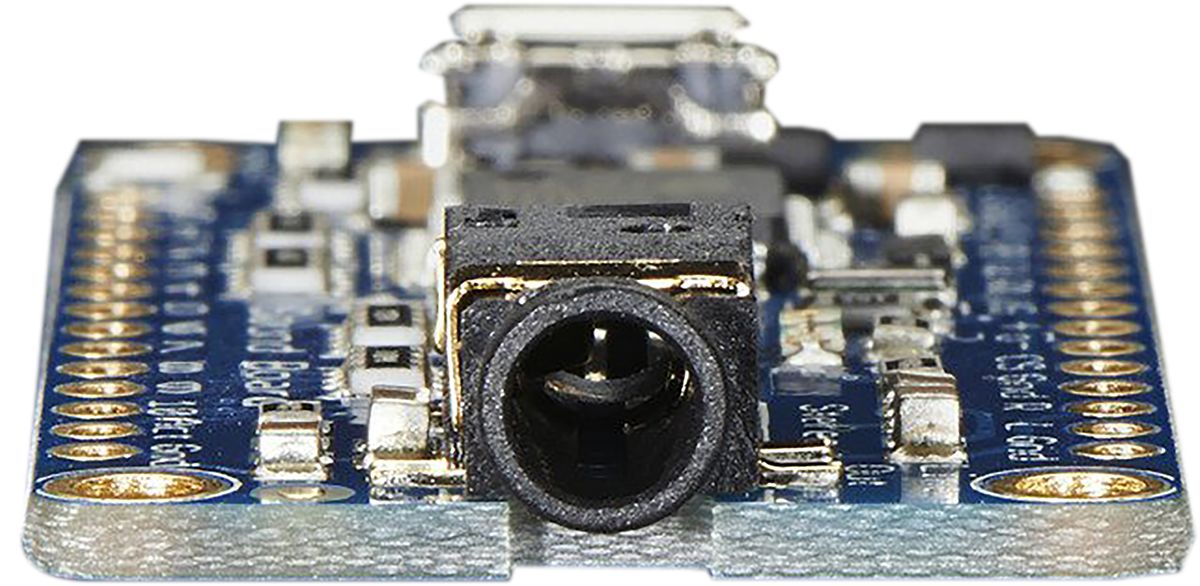

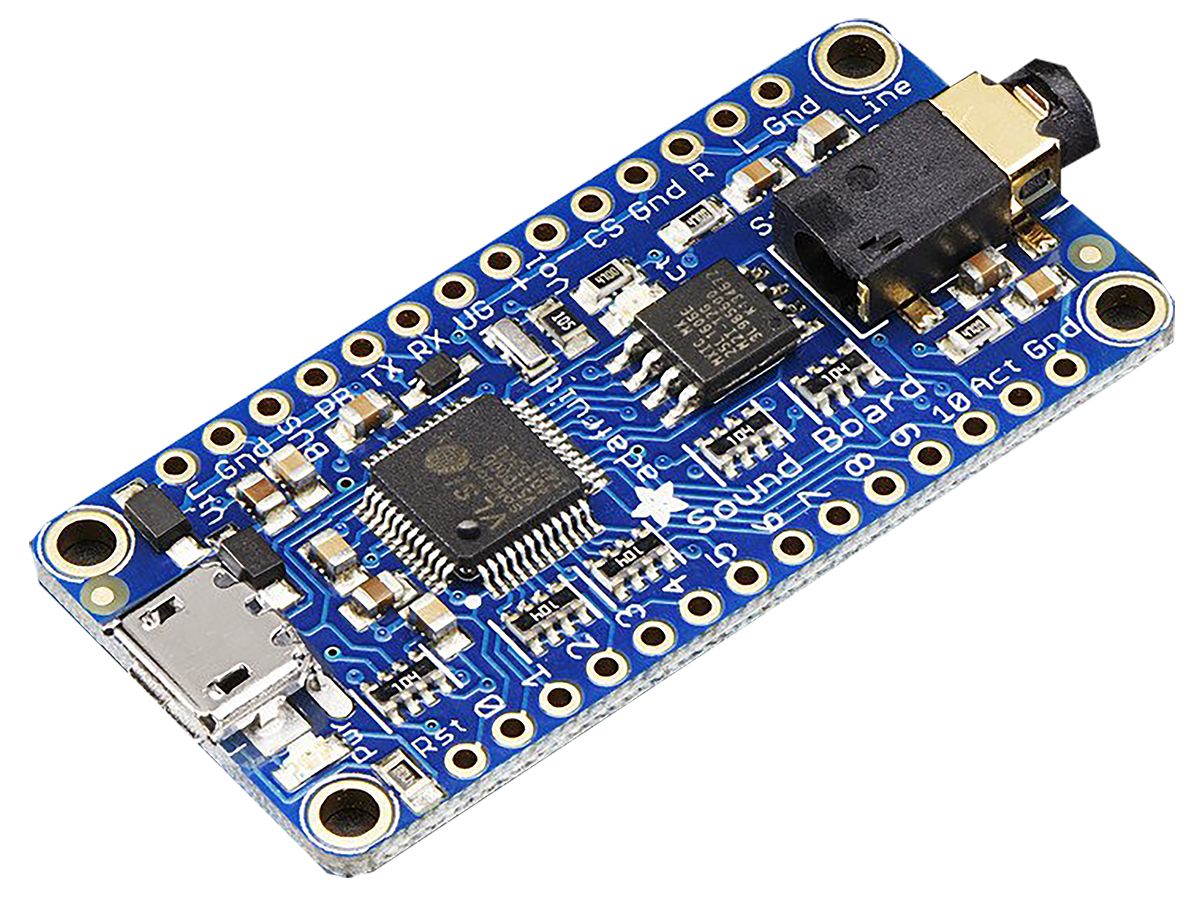

Adafruit 2133, Sound FX Audio Processor Application Board
- RS Stock No.:
- 1245478
- Mfr. Prt No.:
- 2133
- Brand:
- ADAFRUIT INDUSTRIES
Legislation and Compliance
RoHS Certificate of Compliance
EU Directives 2011/65/EU and 2015/863 restrict the use of the 10 substances below in the manufacture of specified types of electrical equipment.
Whilst this restriction does not legally apply to components, it is recognised that component “compliance” is relevant to many customers.
RS definition of RoHS Compliance:
- The product does not contain any of the restricted substances in concentrations and applications banned by the Directive,
- and for components, the product is capable of being worked on at the higher temperatures required by lead–free soldering
The restricted substances and maximum allowed concentrations in the homogenous material are, by weight:
| Substance | Concentration |
| Lead | 0.1% |
| Mercury | 0.1% |
| PBB (Polybrominated Biphenyls) | 0.1% |
| PBDE ( Polybrominated Diphenyl Ethers) | 0.1% |
| Hexavalent Chromium | 0.1% |
| Cadmium | 0.01% |
| DEHP (Bis (2-Ethylhexl) phthalate) | 0.1% |
| BBP (Benzyl butyl phthalate) | 0.1% |
| DBP (Dibutyl phthalate) | 0.1% |
| DIBP (Diisobutyl phthalate) | 0.1% |
The supplier of the item listed below has informed RS Components that the product is "RoHS Compliant".
RS Components has taken all reasonable steps to confirm this statement. Information relates only to products sold on or after the date of this certificate.
| RS stock number | 1245478 |
| Product description | Adafruit 2133, Sound FX Audio Processor Application Board |
| Manufacturer / Brand | ADAFRUIT INDUSTRIES |
| Manufacturer part number | 2133 |
RS Components Ltd, Birchington Road, Corby, Northants, NN17 9RS, UK
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
| RS stock number | 1245478 |
| Product description | Adafruit 2133, Sound FX Audio Processor Application Board |
| Manufacturer / Brand | ADAFRUIT INDUSTRIES |
| Manufacturer part number | 2133 |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Nov 14, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Product Details
Audio & Video
Sound Breakout Boards
Adafruit Sound Breakout Boards are the fastest way to add audio/ sound effects to a project. Applications include: props, costumes, toys and any small portable projects. These boards are powered 3 to 5 V dc (3xAAA battery pack or a LiPoly battery).
The following two Sound Breakout Boards are available in different sizes with different trigger levels:
Adafruit Audio FX Sound Board - 1245478
Adafruit Audio FX Mini Sound Board - 1245485
Features:
No Arduino or other microcontroller required- It is standalone, just needs a 3 to 5 V dc battery
Built in storage
Built in Mass Storage USB -
Compressed or Uncompressed audio
High-Quality Sound - You want 44.1 kHz 16-bit stereo
Stereo line out - Use headphones, powered speakers or even wire up amplifiers to make loud sounds.
Five different trigger effects - by changing the name of the files, you can create five different types of triggers which will cover a large range of projects without any programming
Specifications
| Attribute | Value |
| Brand | ADAFRUIT INDUSTRIES |
| Kit Classification | Application Board |
| Kit Name | Sound FX |
