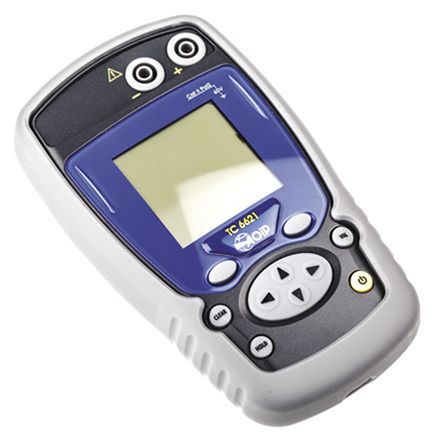

Aoip Instrumentation TC6621 Temperature Calibrator
- RS Stock No.:
- 5083690
- Mfr. Prt No.:
- TC6621
- Brand:
- Aoip Instrumentation
Legislation and Compliance
RoHS Status: Not Applicable
Statement of Conformity
RS Components
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
Compliant Product Details
| RS stock number | 5083690 |
| Product description | Aoip Instrumentation TC6621 Temperature Calibrator |
| Manufacturer / Brand | Aoip Instrumentation |
| Manufacturer part number | TC6621 |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Nov 14, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Country of Origin: FR
Product Details
Specifications
| Attribute | Value |
| Brand | Aoip Instrumentation |
| L Type Thermocouple Maximum Temperature | +900 °C |
| Best Accuracy | ±0.02% + 3 μV |
| Weight | 306 g |
| E Type Thermocouple Minimum Temperature | -250 °C |
| B Type Thermocouple Minimum Temperature | +400 °C |
| Thermocouple Type | B, C, E, J, K, L, N, R, S, T, U |
| T Type Thermocouple Maximum Temperature | +400 °C |
| B Type Thermocouple Maximum Temperature | +1820 °C |
| T Type Thermocouple Minimum Temperature | -250 °C |
| Width | 85 mm |
| K Type Thermocouple Temperature Range | -250 ￫ +1372 °C |
| S Type Thermocouple Temperature Range | -50 ￫ +1768 °C |
| U Type Thermocouple Temperature Range | -200 ￫ +600 °C |
| T Type Thermocouple Temperature Range | -250 ￫ +400 °C |
| J Type Thermocouple Temperature Range | -210 ￫ +1200 °C |
| R Type Thermocouple Temperature Range | -50 ￫ +1768 °C |
| E Type Thermocouple Temperature Range | -250 ￫ +1000 °C |
| B Type Thermocouple Temperature Range | +400 ￫ +1820 °C |
| L Type Thermocouple Temperature Range | -200 ￫ +900 °C |
| Dimensions | 157 x 85 x 45 mm |
| J Type Thermocouple Maximum Temperature | +1200 °C |
| R Type Thermocouple Maximum Temperature | +1768 °C |
| Height | 45 mm |
| Model Number p | TC6621 |
| L Type Thermocouple Minimum Temperature | -200 °C |
| Length | 157 mm |
| R Type Thermocouple Minimum Temperature | -50 °C |
| S Type Thermocouple Maximum Temperature | +1768 °C |
| E Type Thermocouple Maximum Temperature | +1000 °C |
| S Type Thermocouple Minimum Temperature | -50 °C |
| Calibrator Type | Thermocouple Calibrator |
| K Type Thermocouple Minimum Temperature | -250 °C |
| U Type Thermocouple Maximum Temperature | +600 °C |
| Temperature Scale | Centigrade |
| U Type Thermocouple Minimum Temperature | -200 °C |
| K Type Thermocouple Maximum Temperature | +1372 °C |
| Resolution | 0.05 (E) °C, 0.05 (J) °C, 0.05 (K) °C, 0.05 (L) °C, 0.05 (Mo) °C, 0.05 (N) °C, 0.05 (NiMo/NiCo) °C, 0.05 (Plantine) °C, 0.05 (T) °C, 0.05 (U) °C, 0.1 (B) °C, 0.1 (C) °C, 0.1 (R) °C, 0.1 (S) °C, 0.2 (T) °C |
