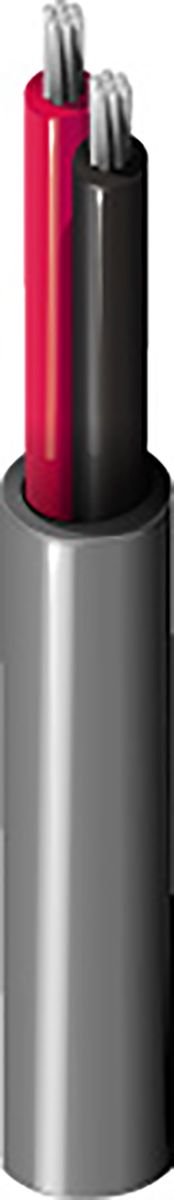

Belden 2 Core, 0.35 mm² CSA, 4.32mm od, 152m, Chrome
- RS Stock No.:
- 0823049
- Mfr. Prt No.:
- 8442 060U500
- Brand:
- Belden
Legislation and Compliance
RoHS Certificate of Compliance
EU Directives 2011/65/EU and 2015/863 restrict the use of the 10 substances below in the manufacture of specified types of electrical equipment.
Whilst this restriction does not legally apply to components, it is recognised that component “compliance” is relevant to many customers.
RS definition of RoHS Compliance:
- The product does not contain any of the restricted substances in concentrations and applications banned by the Directive,
- and for components, the product is capable of being worked on at the higher temperatures required by lead–free soldering
The restricted substances and maximum allowed concentrations in the homogenous material are, by weight:
| Substance | Concentration |
| Lead | 0.1% |
| Mercury | 0.1% |
| PBB (Polybrominated Biphenyls) | 0.1% |
| PBDE ( Polybrominated Diphenyl Ethers) | 0.1% |
| Hexavalent Chromium | 0.1% |
| Cadmium | 0.01% |
| DEHP (Bis (2-Ethylhexl) phthalate) | 0.1% |
| BBP (Benzyl butyl phthalate) | 0.1% |
| DBP (Dibutyl phthalate) | 0.1% |
| DIBP (Diisobutyl phthalate) | 0.1% |
The supplier of the item listed below has informed RS Components that the product is "RoHS Compliant".
RS Components has taken all reasonable steps to confirm this statement. Information relates only to products sold on or after the date of this certificate.
| RS stock number | 0823049 |
| Product description | Belden 2 Core, 0.35 mm² CSA, 4.32mm od, 152m, Chrome |
| Manufacturer / Brand | Belden |
| Manufacturer part number | 8442 060U500 |
RS Components Ltd, Birchington Road, Corby, Northants, NN17 9RS, UK
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
| RS stock number | 0823049 |
| Product description | Belden 2 Core, 0.35 mm² CSA, 4.32mm od, 152m, Chrome |
| Manufacturer / Brand | Belden |
| Manufacturer part number | 8442 060U500 |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Nov 23, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Country of Origin: US
Product Details
Unshielded Multi-pair Cable
This unshielded twisted pair cable from Belden offers a lightweight, thin and flexible cable for many high-data-rate applications. This cable is a cost effective choice for cabling systems.
Features and benefits
Twisted nature of the cable offers some EMI resistance
Lightweight & easy to manipulate
Cost effective vs shielded
Highly durable PVC
Resistance to oil, water, chemicals
Specifications
| Attribute | Value |
| Brand | Belden |
| American Wire Gauge | 22 AWG |
| Insulation Material | PVC |
| Length | 152 m |
| Standards Met | Euroclass Eca |
| Sheath Material | Polyvinyl Chloride PVC |
| Cable Shape | Multicore |
| Minimum Operating Temperature | -20 °C |
| Conductor Strand Type | Stranded |
| Maximum Operating Temperature | +60 °C |
| Core Strands | 7/30 |
| Number of Cores | 2 |
| Cross Sectional Area | 0.35 mm² |
| Conductor Material | Tinned Copper |
| Voltage Rating | 150 V |
| Size of Strands | 30 AWG |
| Sheath Colour | Chrome |
| Number of Strands | 7 |
| Reel Length | 152 m |
| Outer Diameter | 4.32 mm |
