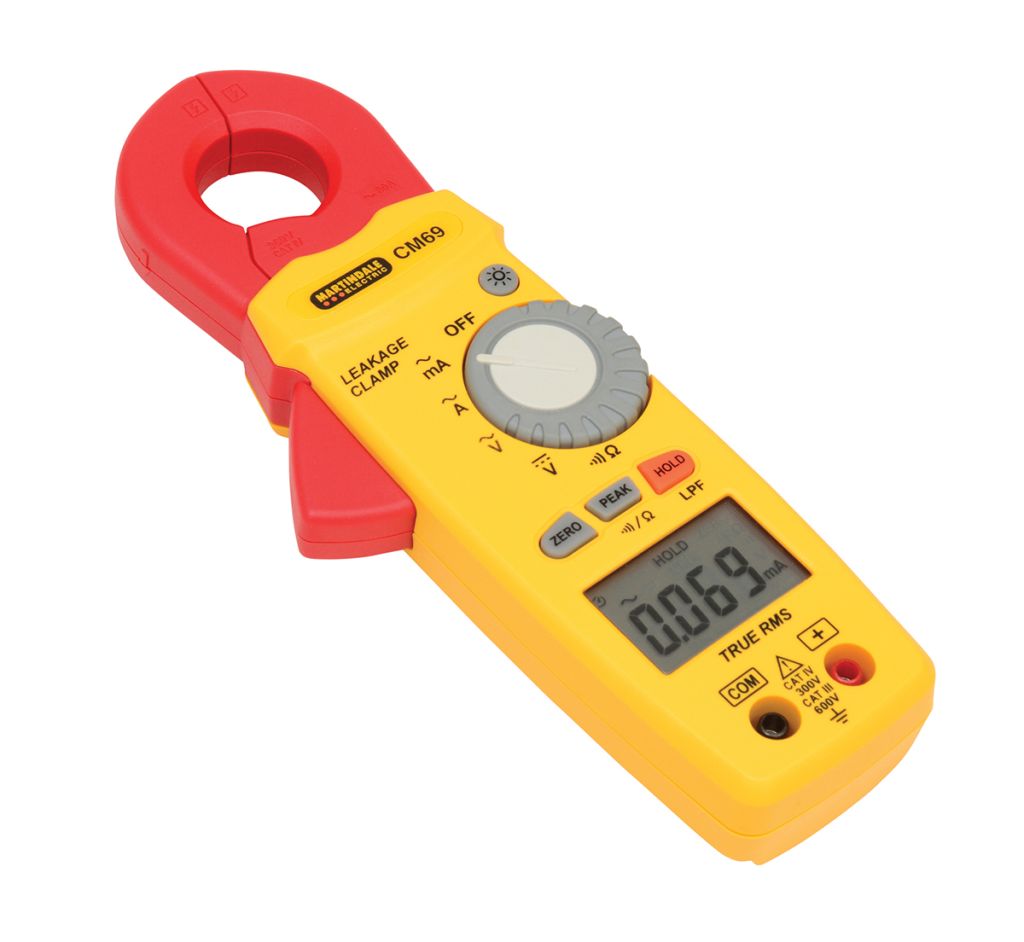

Martindale CM69 Leakage Clamp Meter, Max Current 60A ac CAT II 1000 V, CAT III 1000 V, CAT III 600 V, CAT IV 300 V, CAT
- RS Stock No.:
- 1225531
- Mfr. Prt No.:
- RSCM69
- Brand:
- Martindale
Legislation and Compliance
RoHS Status: Not Applicable
Statement of Conformity
RS Components
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
Compliant Product Details
| RS stock number | 1225531 |
| Product description | Martindale CM69 Leakage Clamp Meter, Max Current 60A ac CAT II 1000 V, CAT III 1000 V, CAT III 600 V, CAT IV 300 V, CAT |
| Manufacturer / Brand | Martindale |
| Manufacturer part number | RSCM69 |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Dec 29, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Country of Origin: TW
Product Details
Specifications
| Attribute | Value |
| Brand | Martindale |
| Absolute Maximum AC Current Measurement | 60 A ac |
| Absolute Maximum AC Voltage Measurement | 300 V ac |
| Absolute Maximum DC Voltage Measurement | 300 V dc |
| Absolute Maximum Resistance Measurement | 600 kΩ |
| Model Number | CM69 |
| AC Current Measurement Resolution | 1 µA |
| Clamp Meter Type | Leakage Clamp Meter |
| Best AC Current Accuracy | ±(1% rdg + 5dgts) |
| Best AC Voltage Accuracy | ±(1% rdg + 3dgts) |
| Best DC Voltage Accuracy | ±(1% rdg + 2dgts) |
| Best Resistance Measurement Accuracy | 1 % + 2 Digits |
| Battery Type | 1.5 V, AAA, Alkaline |
| Height | 33.5 mm |
| True RMS | Yes |
| AC Voltage Measurement Resolution | 10 mV |
| Power Source | Battery |
| Resistance Measurement Resolution | 100 mΩ |
| Length | 206 mm |
| Width | 76 mm |
| Dimensions | 206 x 76 x 33.5 mm |
| DC Voltage Measurement Resolution | 10 mV |
| Safety Category Level | CAT II, CAT III, CAT IV |
| Jaw Capacity Busbars | 20 mm |
| Battery Life | 40 h @ AC, 60 h @ DC |
| Maximum Conductor Size | 20 mm |
| Weight | 262 g |
| Functions Measured | AC Current, AC Voltage, Continuity, DC Voltage, Resistance |
| Minimum Operating Temperature | 0 °C |
| Safety Category Voltage | 300 V, 600 V, 1000 V |
| Safety Category | CAT II 1000 V, CAT III 1000 V, CAT III 600 V, CAT IV 300 V, CAT IV 600 V |
| Display Type | Backlit LCD |
| Maximum Operating Temperature | +40 °C |
