TDK-Lambda Isolated DC-DC Converters, CCG Series

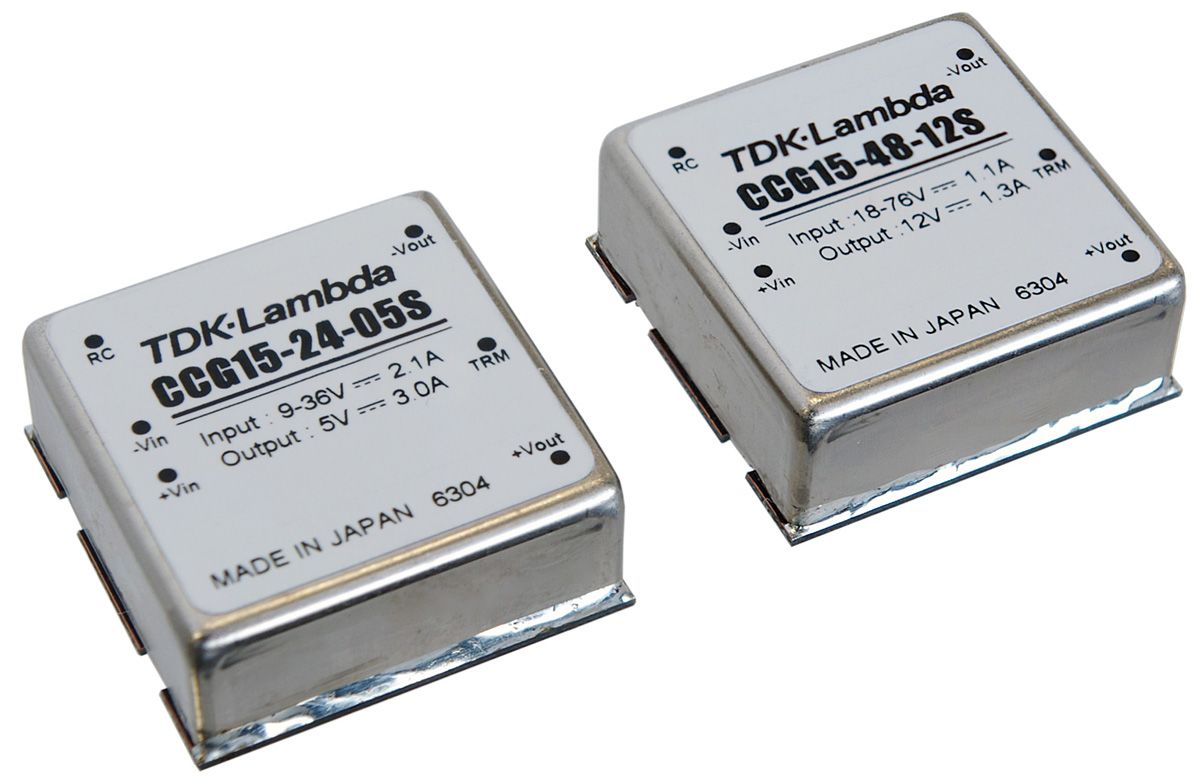

TDK-Lambda CCG15 Series Isolated DC-DC Converters
The CCG15 Series DC-DC Converters are enclosed in a metal case with 6-sided shielding for lower noise and encapsulated for strong shock and vibration performance. These high efficiency converters will operate in ambient temperatures of -40°C to +85°C. Typical applications for this series are test and measurement, broadcast, communication, general purpose industrial,factory automation and process control.
Features and Benefits
• Wide Range DC Input 9-36 or 18-76V
• Industry Standard 1" x 1" Footprint
• High Efficiency - Up to 88%
• Remote on/off
• Adjustable Output
• Six Sided Shielding
• Easier System Thermal Management
• Reduced Radiated Noise
Specifications
| Attribute | Value |
| Brand | TDK-Lambda |
| Output Voltage | 5 V dc |
| Output Voltage Adjustment Range | 4.5 → 5.5 V |
| Input Voltage Range | 9 → 36 V dc |
| Input Voltage Nominal | 9 → 36 V dc |
| Isolation Voltage | 500 V dc |
| Power Rating | 15 W |
| Output Current | 3 A |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Efficiency | 87 % |
| Minimum Temperature | -40 °C |
| Load Regulation | 20 mV |
| Maximum Temperature | +85 °C |
| Width | 25.4 mm |
| Depth | 9.9 mm |
| Standards Met | CE, EN 60950-1, UL/CSA 60950-1 |
| Series | CCG15 |
| Length | 25.4 mm |
