RS PRO Temperature Label Indicator, 1°C to 12°C, 12 Levels
- RS Stock No.:
- 9064612
- Brand:
- RS PRO
Legislation and Compliance
RoHS Certificate of Compliance
EU Directives 2011/65/EU and 2015/863 restrict the use of the 10 substances below in the manufacture of specified types of electrical equipment.
Whilst this restriction does not legally apply to components, it is recognised that component “compliance” is relevant to many customers.
RS definition of RoHS Compliance:
- The product does not contain any of the restricted substances in concentrations and applications banned by the Directive,
- and for components, the product is capable of being worked on at the higher temperatures required by lead–free soldering
The restricted substances and maximum allowed concentrations in the homogenous material are, by weight:
| Substance | Concentration |
| Lead | 0.1% |
| Mercury | 0.1% |
| PBB (Polybrominated Biphenyls) | 0.1% |
| PBDE ( Polybrominated Diphenyl Ethers) | 0.1% |
| Hexavalent Chromium | 0.1% |
| Cadmium | 0.01% |
| DEHP (Bis (2-Ethylhexl) phthalate) | 0.1% |
| BBP (Benzyl butyl phthalate) | 0.1% |
| DBP (Dibutyl phthalate) | 0.1% |
| DIBP (Diisobutyl phthalate) | 0.1% |
The supplier of the item listed below has informed RS Components that the product is "RoHS Compliant".
RS Components has taken all reasonable steps to confirm this statement. Information relates only to products sold on or after the date of this certificate.
| RS stock number | 9064612 |
| Product description | RS PRO Temperature Label Indicator, 1°C to 12°C, 12 Levels |
| Manufacturer / Brand | RS PRO |
RS Components Ltd, Birchington Road, Corby, Northants, NN17 9RS, UK
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
| RS stock number | 9064612 |
| Product description | RS PRO Temperature Label Indicator, 1°C to 12°C, 12 Levels |
| Manufacturer / Brand | RS PRO |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Nov 24, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Country of Origin: GB
Product Details

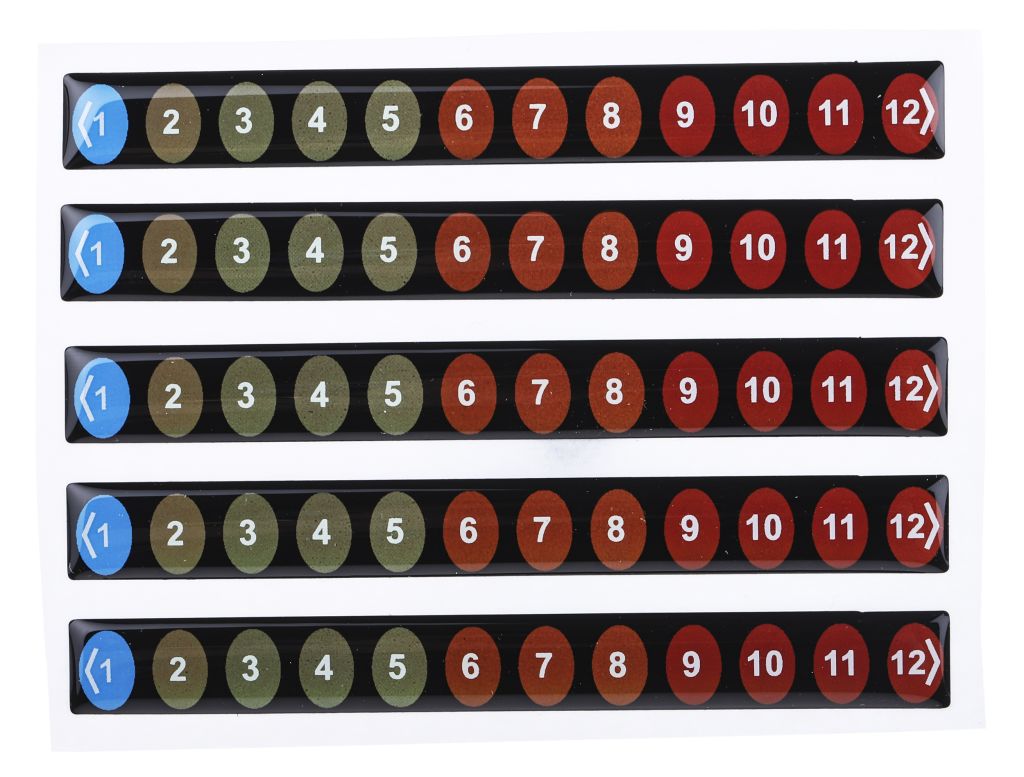

12 Level Horizontal Fridge Thermometer Temperature Indicator
12 Level Fridge Thermometer. This self-adhesive thermometer is for use inside refrigerators to ensure food or medicines are stored at the correct temperatures. If only a blue colour is indicated then the fridge is too cold. The temperature is ideal when the green area is indicated and if the amber area is indicated then the fridge temperature may need to be turned down lightly. Any temperature indicated within the red area then the fridge is too hot and the temperature must be turned down immediately.
Self adhesive
Temperature range is 1 to 12°C
Size is 10mm high and 90mm wide
100 micron clear polyester
Adhesive – Modified acrylic adhesive suitable for most surfaces
Accuracy +/- 1°C
Supplied in packs of 10
Specifications
| Attribute | Value |
| Brand | RS PRO |
| Orientation | Horizontal |
| Label Length | 10 mm |
| Label Width | 90 mm |
| Labels Per Product | 10 |
| Maximum Temperature Sensitivity | 12 °C |
| Minimum Temperature Sensitivity | 1 °C |
| Number of Temperature Levels | 12 |
| Reversibility | Yes |
