Fibox CAB P, Polyester, Wall Box, IP66, 170mm x 315 mm x 215 mm
- RS Stock No.:
- 5075352
- Mfr. Prt No.:
- CAB P 302017 cabinet
- Brand:
- Fibox
Legislation and Compliance
RoHS Certificate of Compliance
EU Directives 2011/65/EU and 2015/863 restrict the use of the 10 substances below in the manufacture of specified types of electrical equipment.
Whilst this restriction does not legally apply to components, it is recognised that component “compliance” is relevant to many customers.
RS definition of RoHS Compliance:
- The product does not contain any of the restricted substances in concentrations and applications banned by the Directive,
- and for components, the product is capable of being worked on at the higher temperatures required by lead–free soldering
The restricted substances and maximum allowed concentrations in the homogenous material are, by weight:
Substance | Concentration |
Lead | 0.1% |
Mercury | 0.1% |
PBB (Polybrominated Biphenyls) | 0.1% |
PBDE ( Polybrominated Diphenyl Ethers) | 0.1% |
Hexavalent Chromium | 0.1% |
Cadmium | 0.01% |
DEHP (Bis (2-Ethylhexl) phthalate) | 0.1% |
BBP (Benzyl butyl phthalate) | 0.1% |
DBP (Dibutyl phthalate) | 0.1% |
DIBP (Diisobutyl phthalate) | 0.1% |
The supplier of the item listed below has informed RS Components that the product is "RoHS Compliant".
RS Components has taken all reasonable steps to confirm this statement. Information relates only to products sold on or after the date of this certificate.
RS stock number | 5075352 |
Product description | Fibox CAB P, Polyester, Wall Box, IP66, 170mm x 315 mm x 215 mm |
Manufacturer / Brand | Fibox |
Manufacturer part number | CAB P 302017 cabinet |
RS Components Ltd, Birchington Road, Corby, Northants, NN17 9RS, UK
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
RS stock number | 5075352 |
Product description | Fibox CAB P, Polyester, Wall Box, IP66, 170mm x 315 mm x 215 mm |
Manufacturer / Brand | Fibox |
Manufacturer part number | CAB P 302017 cabinet |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
Date | Nov 13, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Product Details

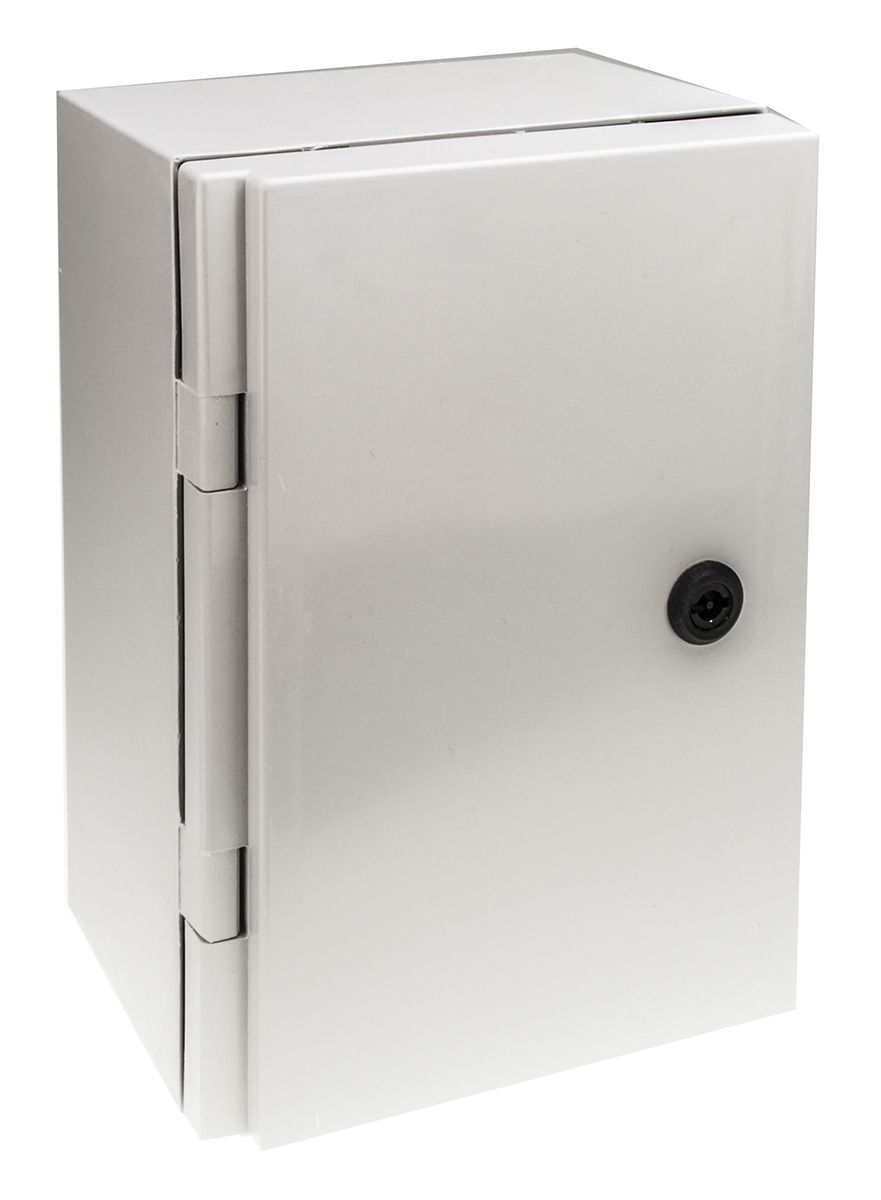

Fibox CAB P Polyester Enclosure, IP66
The CAB P series from Fibox is an IP66 rated wall mount enclosure made from impact resistant glass reinforced polyester. It can withstand harsh industrial and outdoor environments and has a UL94-HB flammability rating.
Note
The screws for mounting the enclosure on to the wall are not included.

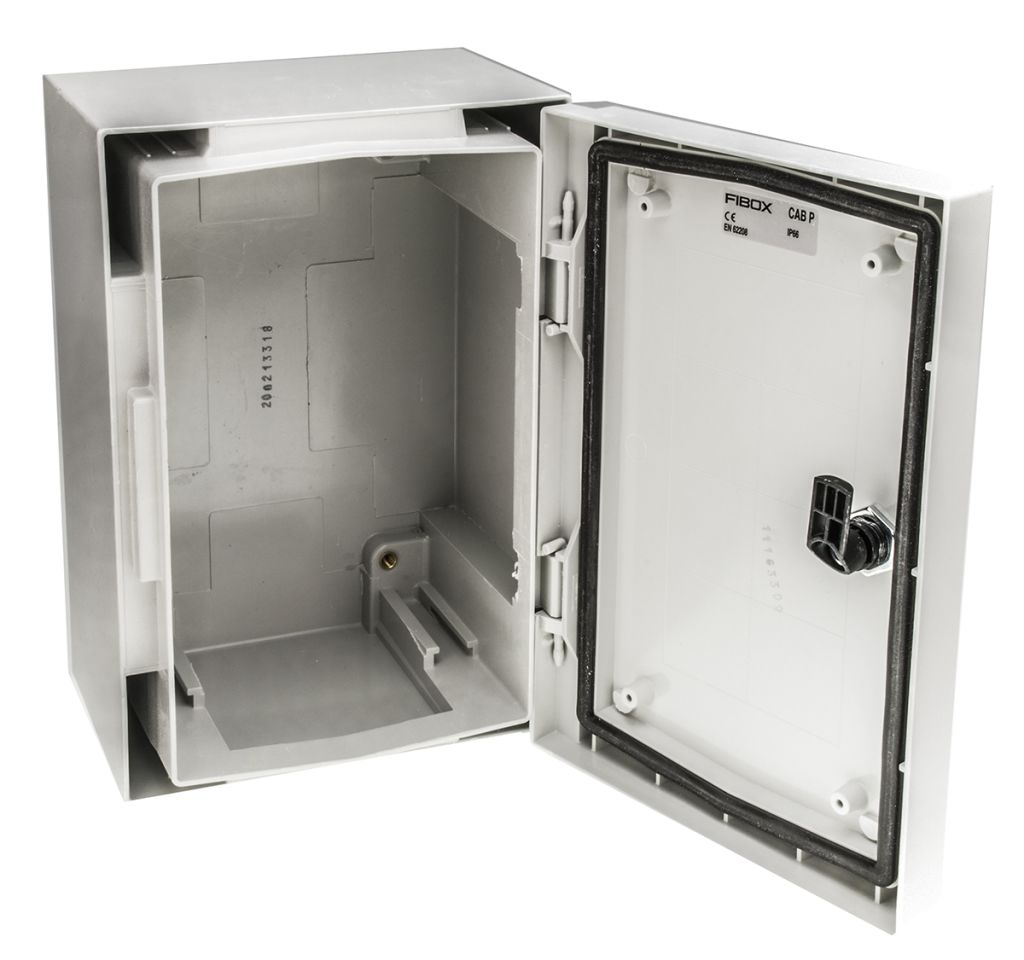

SUPPLIED_WITH : Cabinet base, door with PUR gasket, 3 mm double bi
APPROVALS : NEMA Type 3, 3R, 3S, 4, 4X, 12, 13.
Cabinets
Manufactured from high impact resistant glass reinforced polyester
Light grey RAL 7035
Withstands harsh industrial and outdoor environments
Hinged cover
Flammability rating UL94-HB
UV resistant UL 508
Electrically insulated
Mounting Plates (supplied separately)
Galvanised steel 1.5 mm thick
Mounting screws are supplied with the cabinet
Specifications
Attribute | Value |
Brand | Fibox |
Fixing Kit | No |
Series | CAB P |
Colour | Grey |
External Depth | 170 mm |
Door Lock Type | Key |
Chassis Plate | No |
Body Material | Polyester |
Internal Mounting Type | DIN Rail, Panel |
External Width | 215 mm |
External Mounting Type | Bracket, Holes Outside Gasket Area |
IP Rating | IP66 |
Transparent Door | No |
Gland Plate | No |
External Height | 315 mm |
