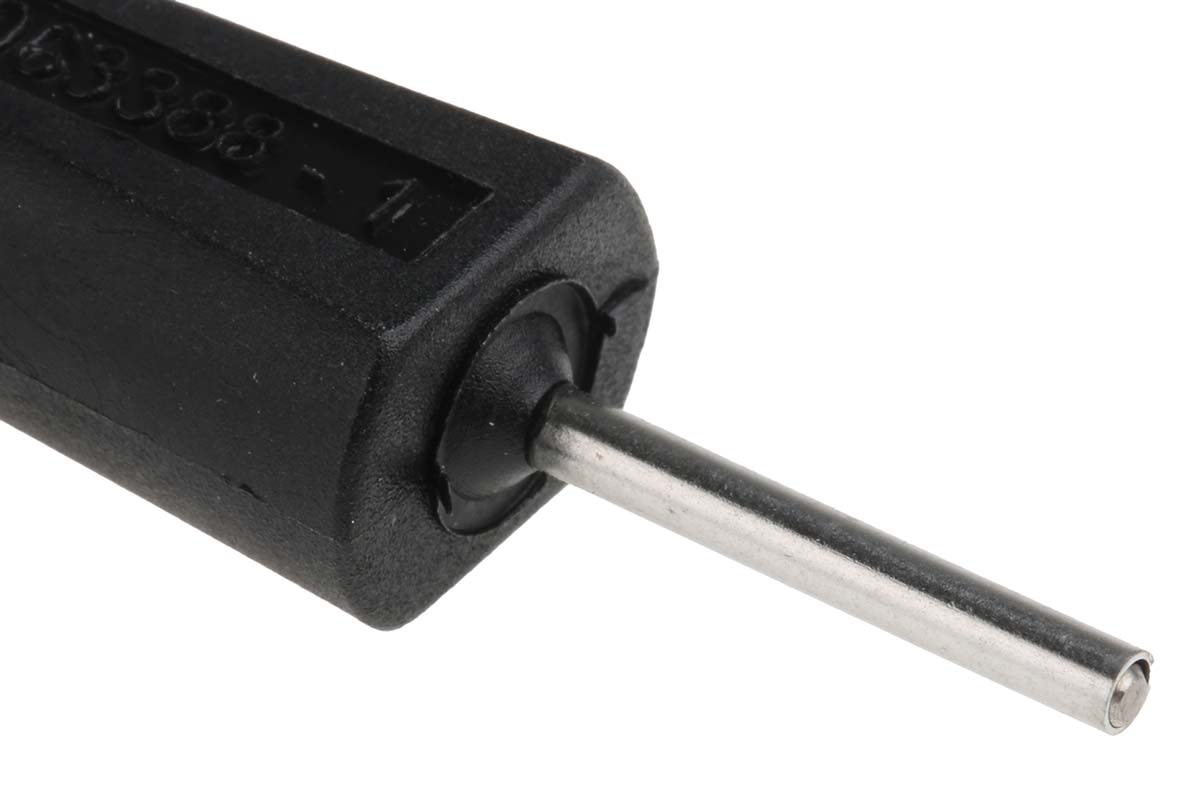

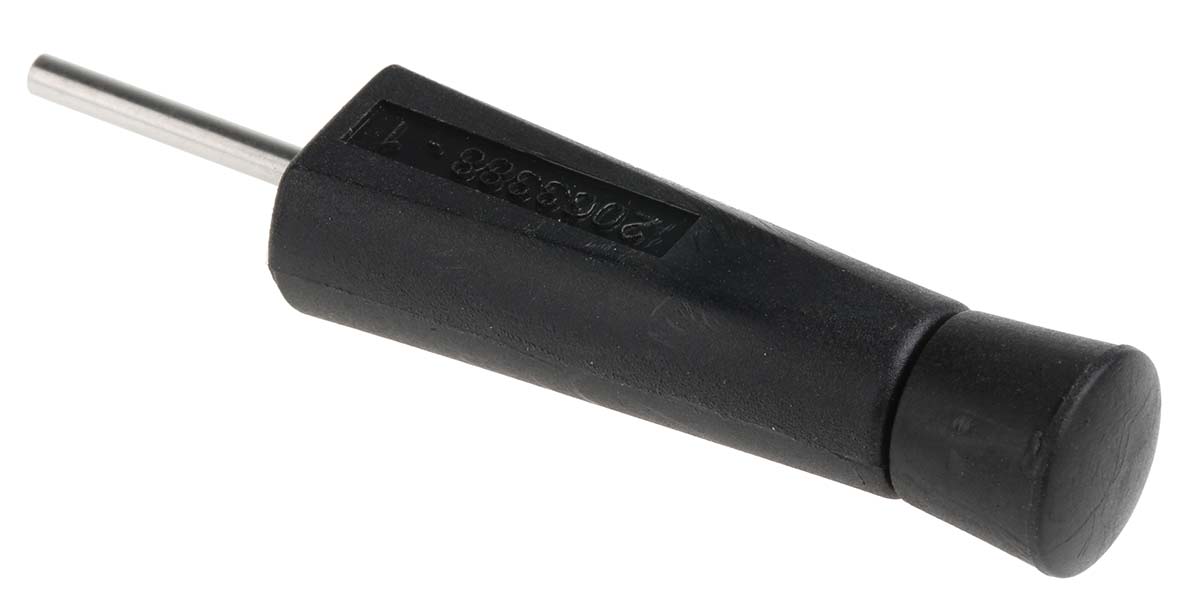

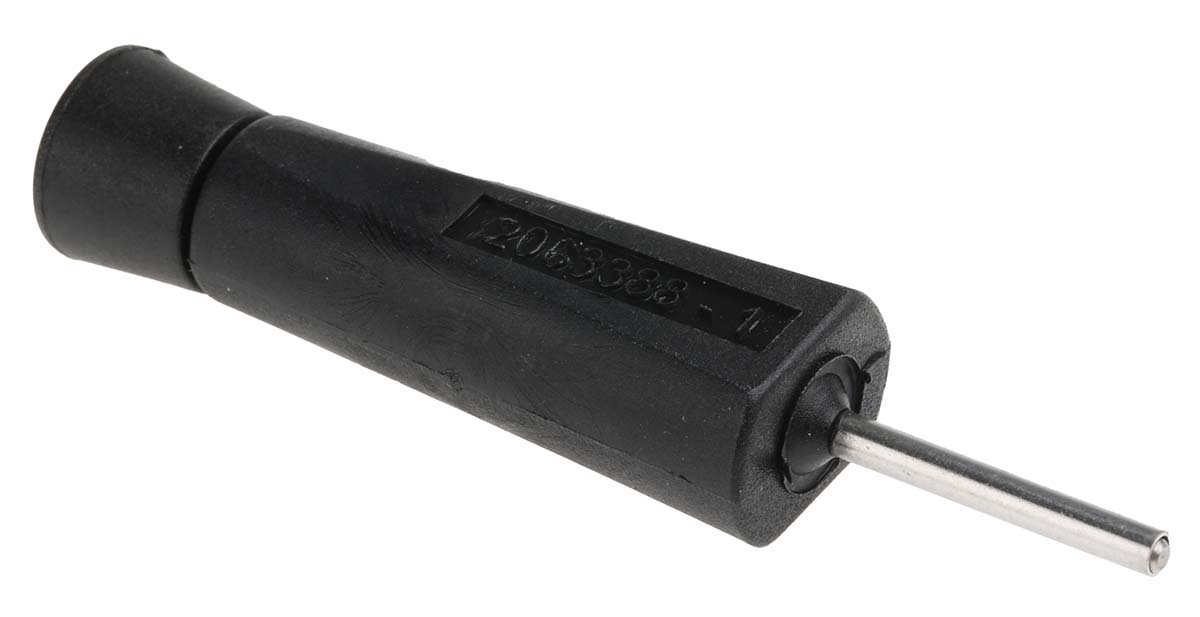

TE Connectivity Crimp Extraction Tool, MATE-N-LOK Series, Pin Contact, Contact size 2.54mm
- RS Stock No.:
- 7826301
- Mfr. Prt No.:
- 2063388-1
- Brand:
- TE Connectivity
Legislation and Compliance
RoHS Status: Non Compliant
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
| RS stock number | 7826301 |
| Product description | TE Connectivity Crimp Extraction Tool, MATE-N-LOK Series, Pin Contact, Contact size 2.54mm |
| Manufacturer / Brand | TE Connectivity |
| Manufacturer part number | 2063388-1 |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Dec 28, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Product Details
TE Connectivity Miniature Rectangular (MR)
Power Connectors
TE Connectivity Miniature Rectangular (MR) Tooling
This Extraction Tool is designed for use with Miniature Rectangular contacts, Miniature Universal Mate-N-Lok contacts and Commercial .062 pin contacts. The tip of this MR Extraction Tool is inserted into the mating side of the housing to depress the contact locking lances and allowing the contact to be withdrawn from the wire side. The MR Extraction Tool has a plastic handle and metal tip.
Specifications
| Attribute | Value |
| Brand | TE Connectivity |
| Overall Length | 2.38 in |
| Contact Type | Pin |
| Contact Size | 2.54 mm |
| Series | MATE-N-LOK |
| Tool Type | Extraction Tool |
