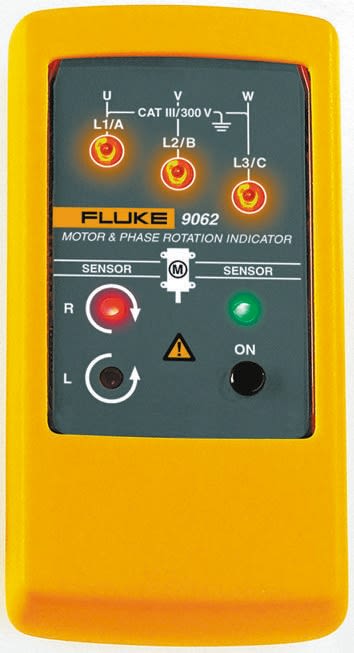

Fluke 9062 Phase Rotation Tester, CAT III 300 V, 400Hz Max, 400V ac Max
- RS Stock No.:
- 5131834
- Mfr. Prt No.:
- FLUKE 9062
- Brand:
- Fluke
Legislation and Compliance
RoHS Status: Not Applicable
Statement of Conformity
RS Components
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
Compliant Product Details
| RS stock number | 5131834 |
| Product description | Fluke 9062 Phase Rotation Tester, CAT III 300 V, 400Hz Max, 400V ac Max |
| Manufacturer / Brand | Fluke |
| Manufacturer part number | FLUKE 9062 |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Dec 27, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Country of Origin: CN
Product Details
Specifications
| Attribute | Value |
| Brand | Fluke |
| Width | 27 mm |
| Maximum Frequency | 400 Hz |
| Minimum Frequency | 2 Hz |
| Dimensions | 61 x 27 x 124 mm |
| Minimum Operating Temperature | 0 °C |
| Height | 124 mm |
| Model Number p | 9062 |
| Current Consumption | 20 mA |
| Weight | 150 g |
| Maximum Operating Temperature | +40 °C |
| Safety Category Level | CAT III |
| Safety Category Voltage | 300 V |
| Battery Type | 9V |
| Safety Category | CAT III 300 V |
| Display Type | LED |
| Power Source | Battery |
| Length | 61 mm |
| Overvoltage Category | CAT III 300V |
| Non-Contact | Non Contact |
| Connection Type | Test Probe |
| Maximum Voltage | 400 V ac |
