Fluke 922/KIT Differential Manometer Kit, Max Pressure Measurement 40mbar
- RS Stock No.:
- 0287636
- Mfr. Prt No.:
- FLUKE 922/KIT
- Brand:
- Fluke
Legislation and Compliance
RoHS Status: Not Applicable
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
| RS stock number | 0287636 |
| Product description | Fluke 922/KIT Differential Manometer Kit, Max Pressure Measurement 40mbar |
| Manufacturer / Brand | Fluke |
| Manufacturer part number | FLUKE 922/KIT |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Dec 29, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Country of Origin: CN
Product Details

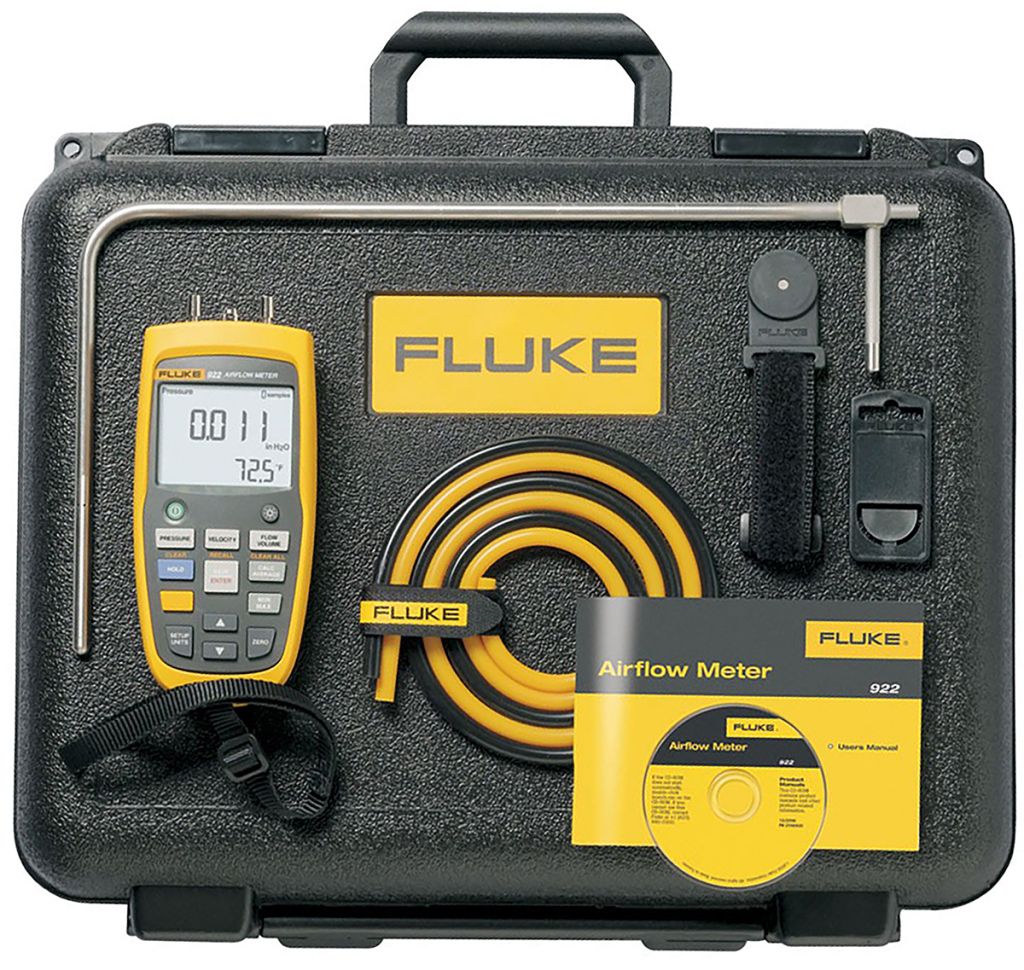

Fluke 922 Pressure, Velocity & Air Flow Kit
The Fluke 922 kit combines air pressure, air flow, and air velocity measurements in a single, rugged meter. The Fluke 922 can be used to ensure proper air flow balance and maintain a comfortable environment; measure pressure drops across filters and coils; match ventilation to occupant loads; monitor indoor vs. outdoor pressure relationships and manage the building envelope; perform duct traversals for accurate airflow readings.
SUPPLIED_WITH : Fluke 922 - two rubber hoses, wrist strap, 300mm P
FEATURES and BENEFITS:
Measures differential and static air pressure, air velocity and air flow readings
User-defined duct shape and size for maximum airflow accuracy
Convenient coloured hoses help properly diagnose pressure readings
Bright, backlit display for clear viewing in all environments
Min/Max/Average/Hold functions for easy data analysis
Selectable displayed Units
Auto power off saves battery life
Specifications
| Attribute | Value |
| Brand | Fluke |
| Dimensions | 175 x 77.5 x 41.9 mm |
| Best Accuracy | ±1% +0.01 mbar |
| Maximum Pressure Measurement | 40 mbar |
| Minimum Pressure Measurement | 0 mbar |
| IP Rating | IP40 |
| Minimum Operating Temperature | 0 °C |
| Model Number p | 922/KIT |
| Weight | 640 g |
| Pressure Port Type | Differential |
| Data Logging | Yes |
| Battery Type | AA |
| Minimum/Maximum Recordings | Yes |
| Display Type | LCD |
| Maximum Operating Temperature | +50 °C |
