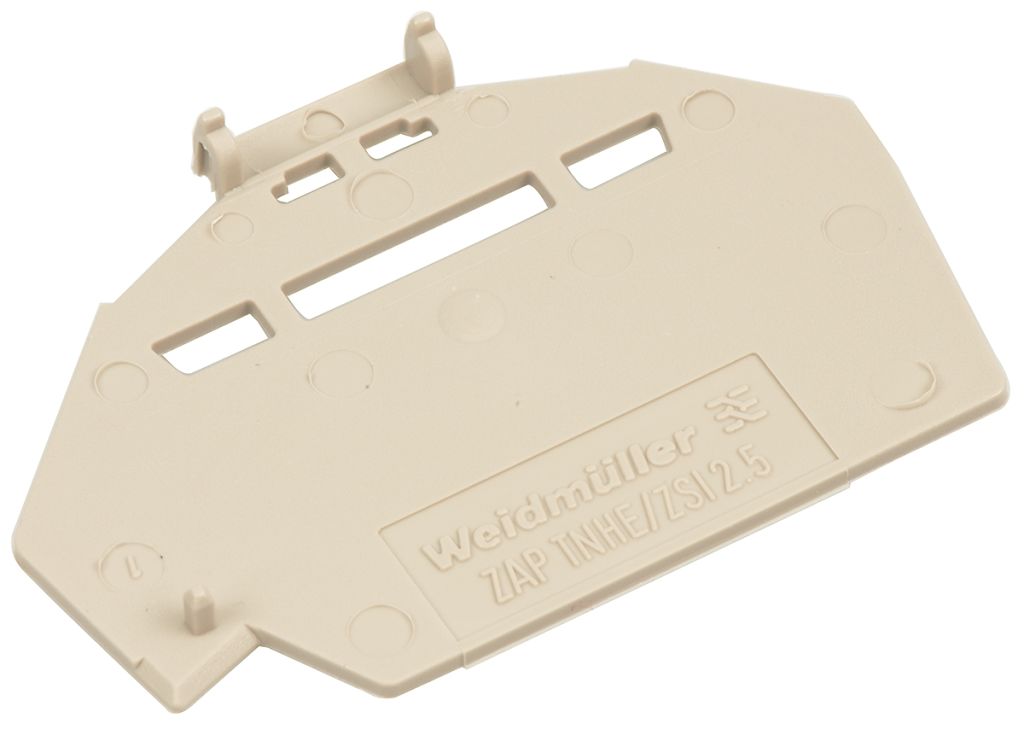

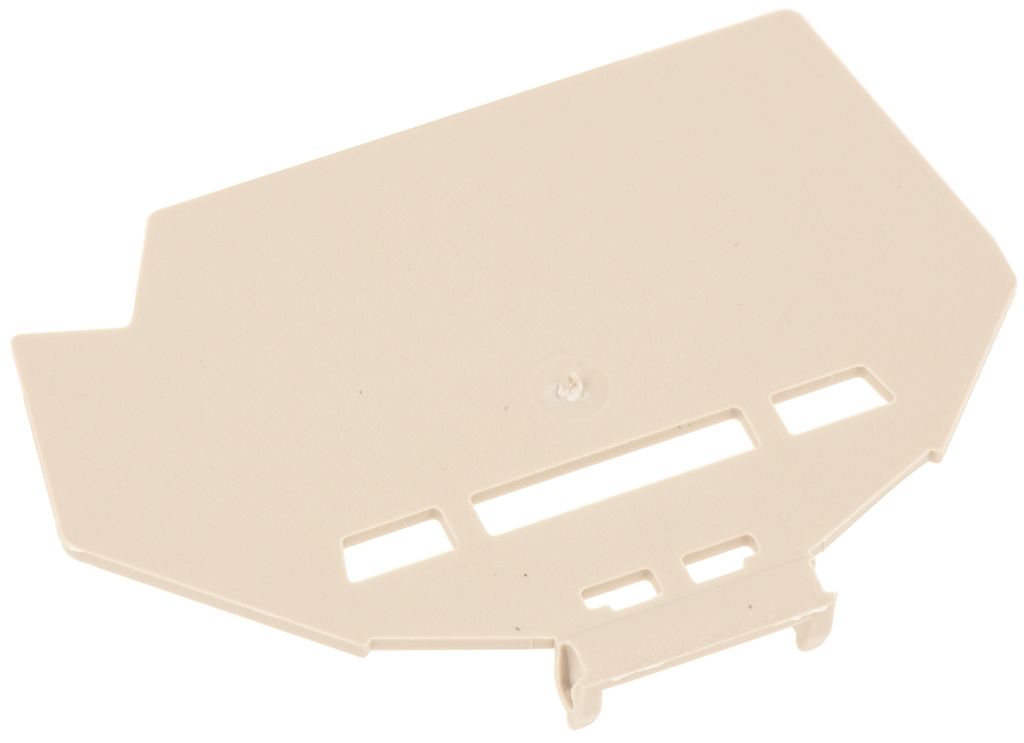

FUSE PLATE FOR ZSI2.5 FUSE TERMINAL
- RS Stock No.:
- 2272910
- Brand:
- Weidmuller
Legislation and Compliance
RoHS Status: Not Applicable
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
| RS stock number | 2272910 |
| Product description | FUSE PLATE FOR ZSI2.5 FUSE TERMINAL |
| Manufacturer / Brand | Weidmuller |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Dec 27, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Product Details
Fuse Terminals
Accepting standard 20x5mm (max. 6.3A) and 1/4 x1 1/4 in. (max. 10A) fuses, these terminals have a pivot top so that the fuses can be isolated, and then removed or tested in situ.,For end protection, an end cover for the lower half of the terminal is required and a fuse plate, which flips up for easy access, is required for protection of the upper fuse carrier.
Note
The 1 1/4 x 1/4 terminal does not have ATEX Approval.
APPROVALS : CSA certified, UL listed, SEV, KEMA 00 ATEX 2107U,
Specifications
| Attribute | Value |
| Brand | Weidmuller |
| Series | Z |
| For Use With | Terminal Block |
| Accessory Type | End Cover |
