RS PRO Magnifier, 10X x Magnification
- RS Stock No.:
- 6830826
- Brand:
- RS PRO
Legislation and Compliance
RoHS Status: Not Applicable
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
| RS stock number | 6830826 |
| Product description | RS PRO Magnifier, 10X x Magnification |
| Manufacturer / Brand | RS PRO |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Nov 28, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Country of Origin: CN
Product Details

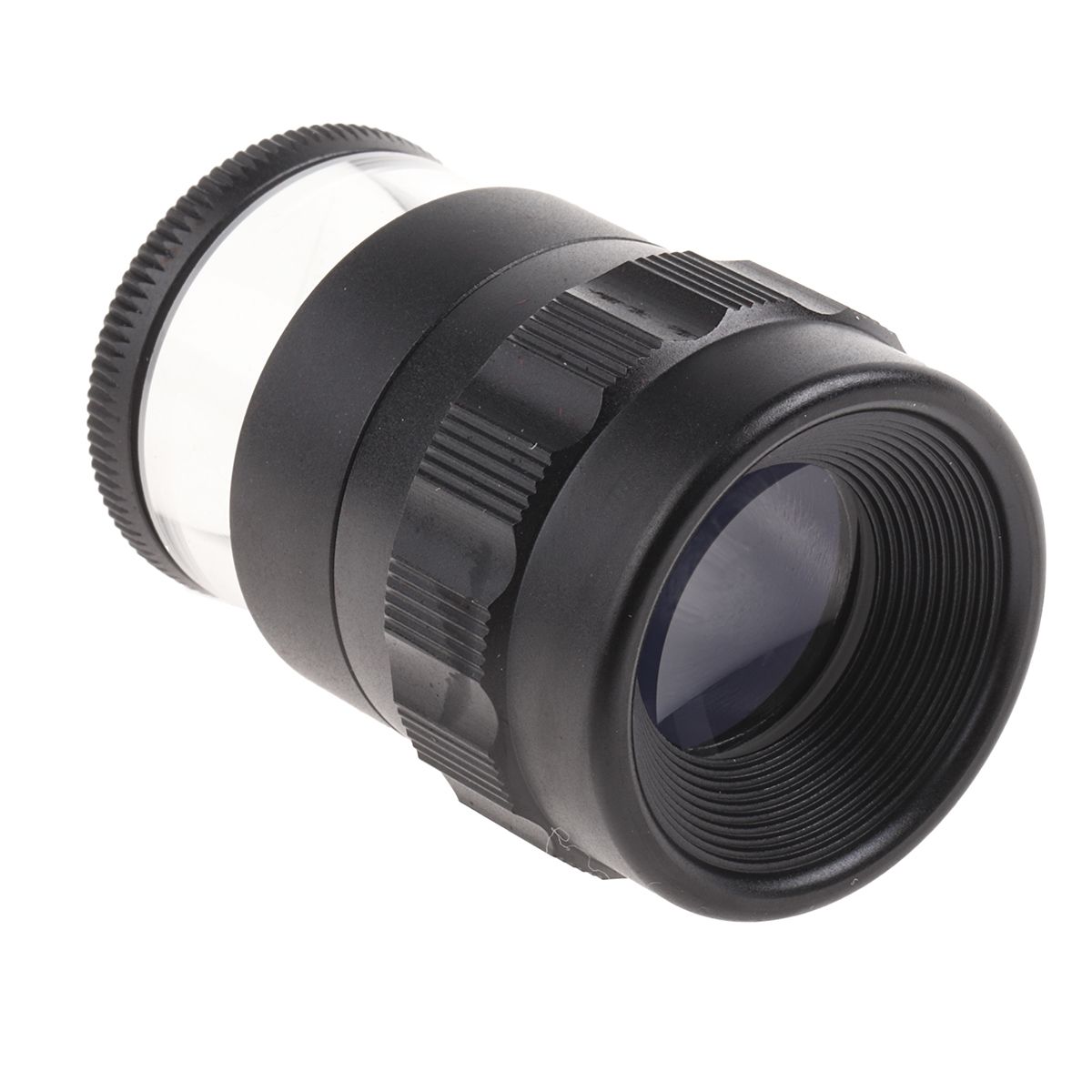

Graticule Magnifier
Note
For suitable scales see RS 683-0835 (No.1); 683-0838 (No.2); 683-0832 (No.3); & 683-0841 (No.4).

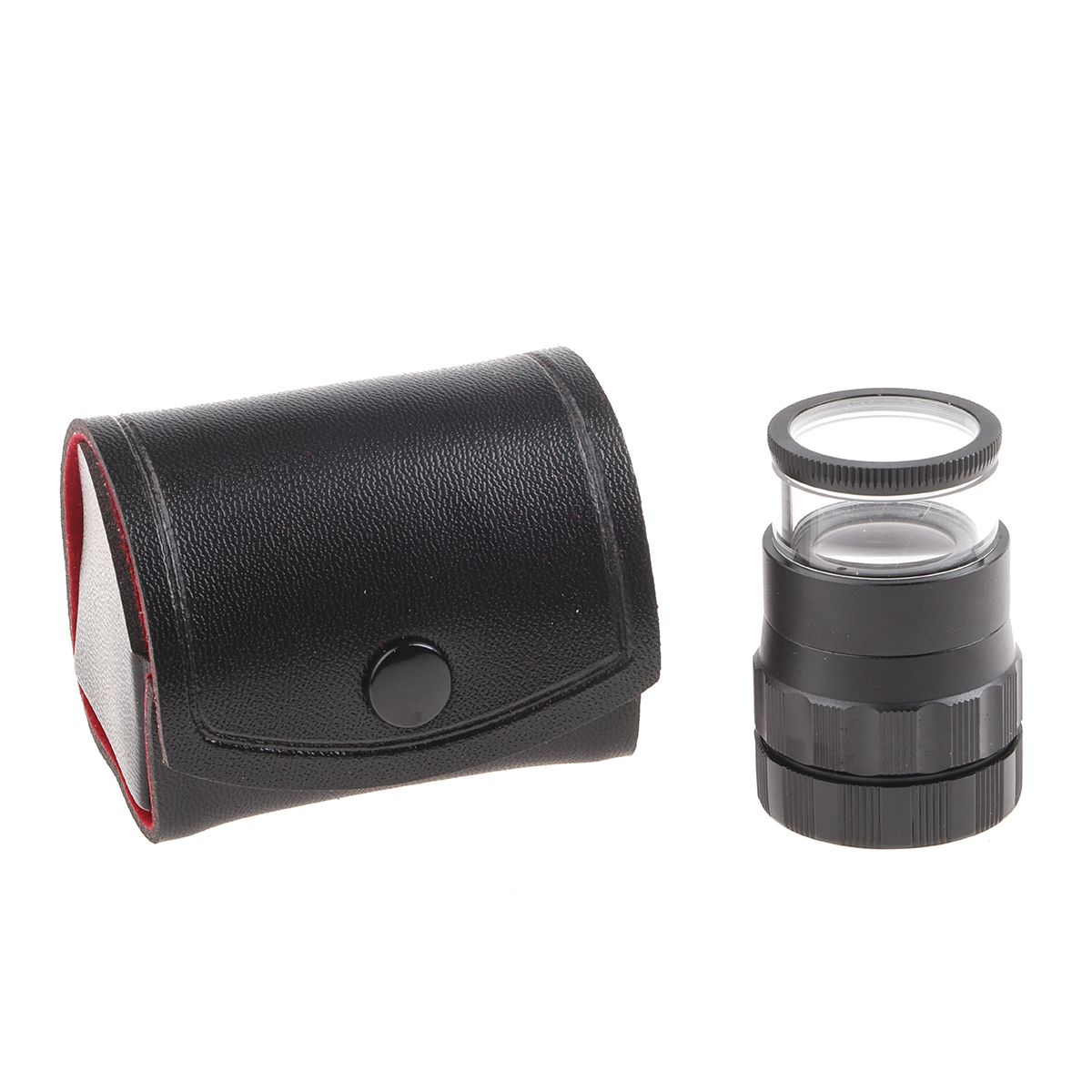

SUPPLIED_WITH : Velvet lined leatherette case.
Measurement of linear dimensions, angles, radii & grid sizes depending (on which scale is fitted)
Each magnifier is fitted with a Metric No.2 (8) scale 0-20mm x 0.1mm grads.

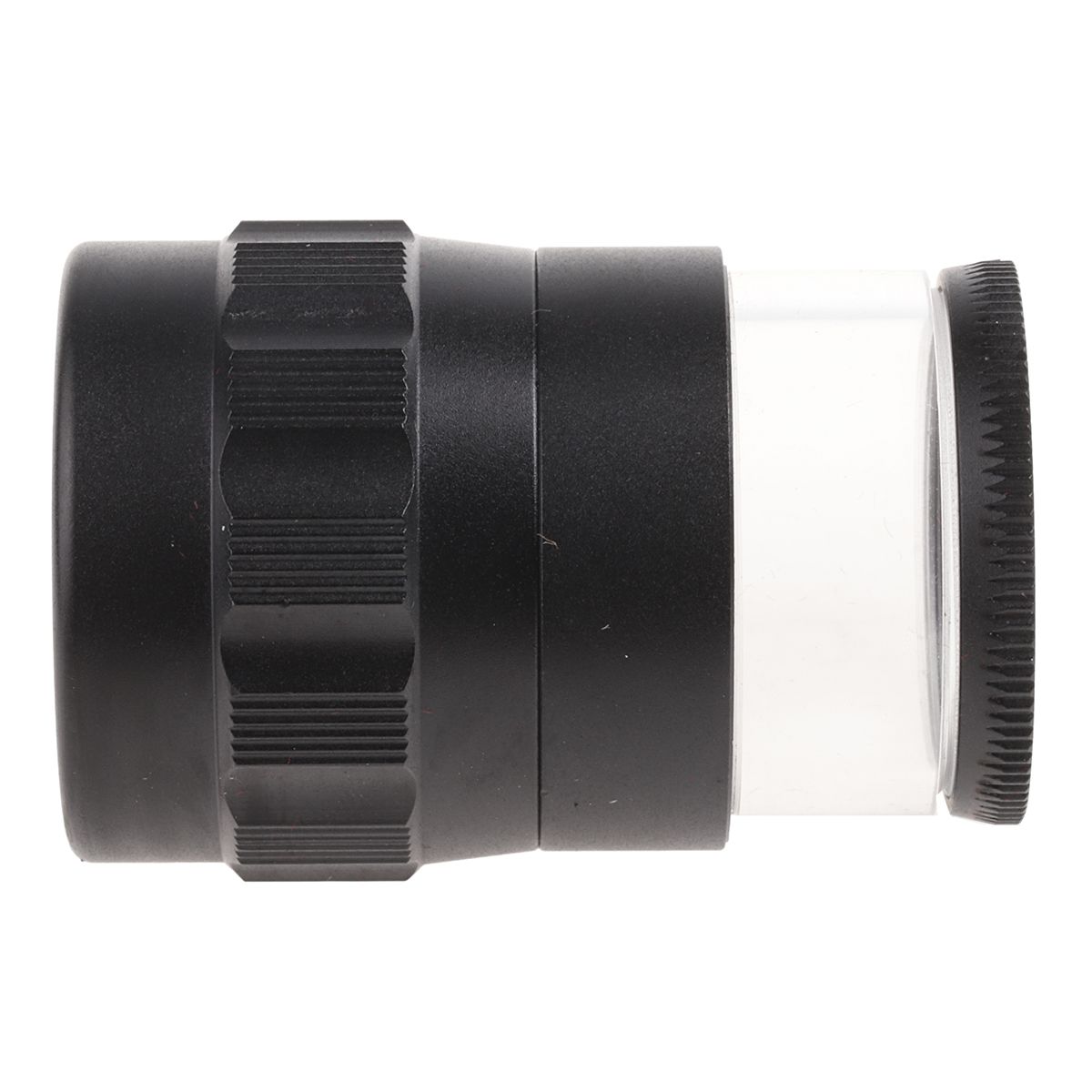

Body manufactured from black anodized aluminum & incorporates a positive focusing ring

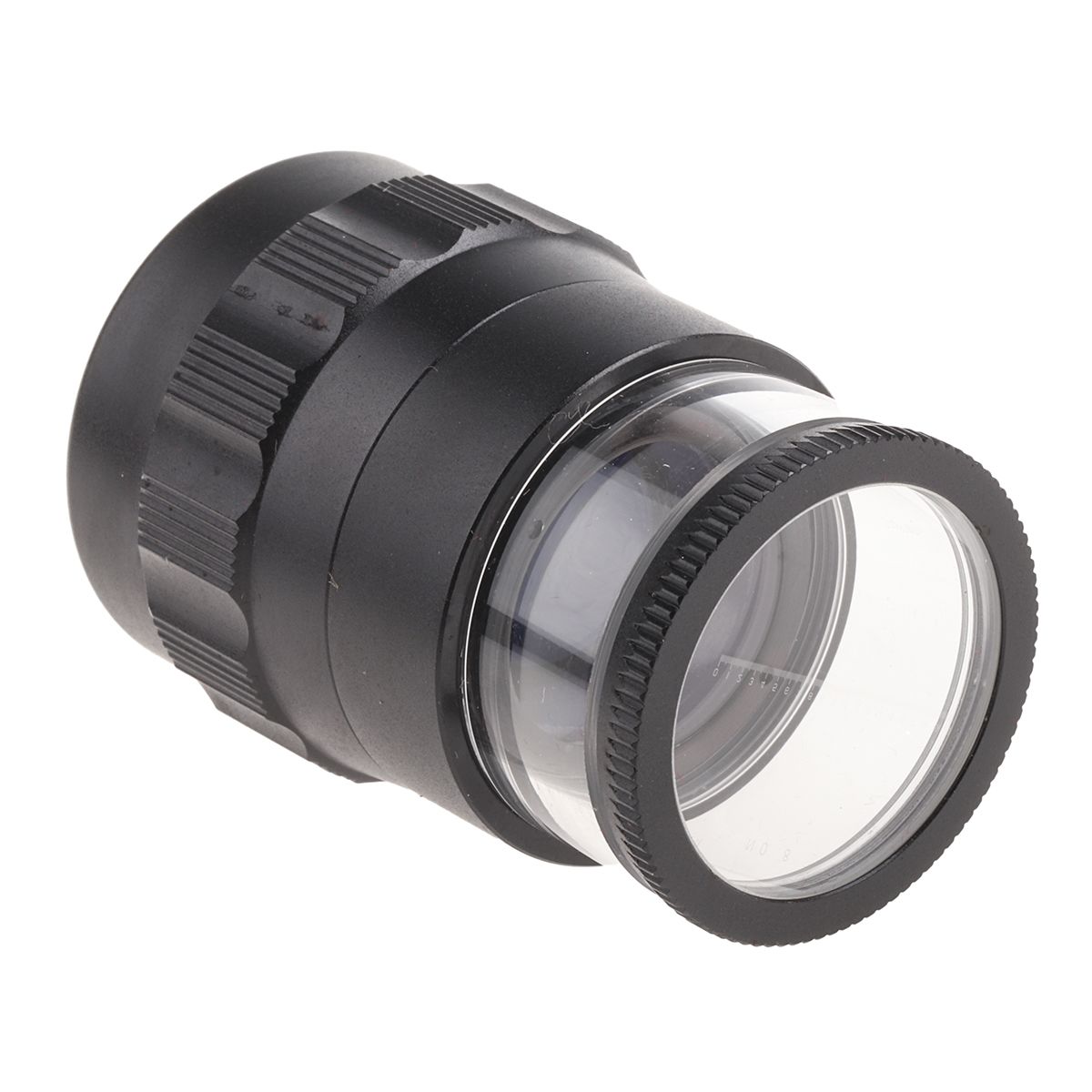

Scales are fitted to the base of the clear acrylic drawtube
Specifications
| Attribute | Value |
| Brand | RS PRO |
| Magnification Power | 10 X |
| Magnifier Type | Graticule Magnifier |
