RS PRO EPDM M32 Cable Gland, 20mm, IP67, Grey
- RS Stock No.:
- 2797065
- Brand:
- RS PRO
Legislation and Compliance
RoHS Status: Not Applicable
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
| RS stock number | 2797065 |
| Product description | RS PRO EPDM M32 Cable Gland, 20mm, IP67, Grey |
| Manufacturer / Brand | RS PRO |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Dec 28, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Country of Origin: FI
Product Details

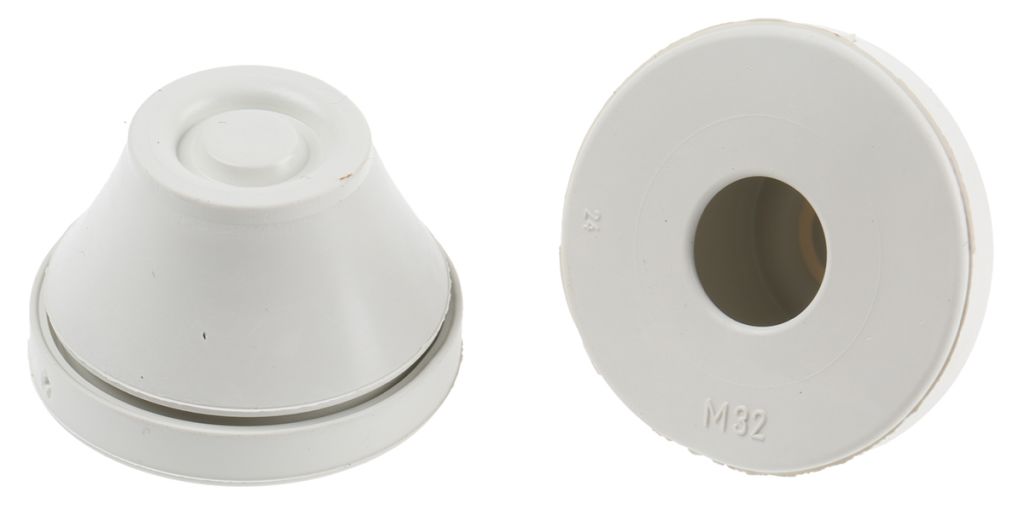

RS Pro IP67 EPDM Cable Glands/Grommets
The grey RS Pro halogen free rubber membrane cable grommets are an excellent choice where space is limited.
Note
This product is not suitable as a direct replacement for traditional cable glands when positive and secure retention are needed.
Features and Benefits
Provides protection up to IP67
Quick and low-cost method of feeding cables through panels
Tapered top provides a degree of retention and sealing
Thread size of M16 to M50
Operating temperature of -40°C to +110°C
Cable diameter range of 5 to 35 mm
Specifications
| Attribute | Value |
| Brand | RS PRO |
| Colour | Grey |
| Maximum Operating Temperature | +110 °C |
| Minimum Cable Diameter | 15 mm |
| IP Rating | IP67 |
| Minimum Operating Temperature | -40 °C |
| Maximum Cable Diameter | 20 mm |
| Material | EPDM |
| Thread Size | M32 |
