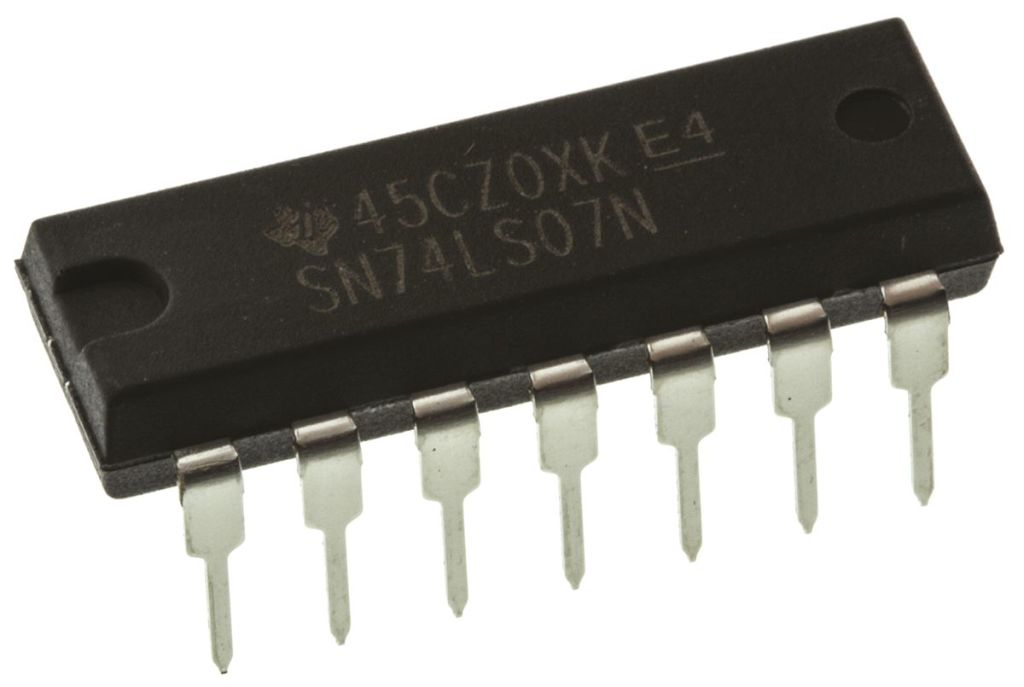

Texas Instruments SN74LS07N Hex-Channel Buffer & Line Driver, Open Collector, 14-Pin PDIP
- RS Stock No.:
- 0442808
- Mfr. Prt No.:
- SN74LS07N
- Brand:
- Texas Instruments
Legislation and Compliance
RoHS Status: Not Applicable
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
| RS stock number | 0442808 |
| Product description | Texas Instruments SN74LS07N Hex-Channel Buffer & Line Driver, Open Collector, 14-Pin PDIP |
| Manufacturer / Brand | Texas Instruments |
| Manufacturer part number | SN74LS07N |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Nov 13, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Product Details
74LS Family
74LS Family Inverters & Buffers, Texas Instruments
Texas Instruments range of Inverters and Buffers from the 74LS Family of Low Power Schottky Logic ICs. The 74LS Family use bipolar junction technology coupled with Schottky diode clamps to achieve operating speeds equal to the original 74TTL family but with much lower power consumption.
Specifications
| Attribute | Value |
| Brand | Texas Instruments |
| Logic Family | LS |
| Logic Function | Buffer, Driver |
| IC Type | Buffer & Line Driver |
| Number of Channels per Chip | 6 |
| Input Type | Single Ended |
| Output Type | Open Collector |
| Polarity | Non-Inverting |
| Mounting Type | Through Hole |
| Package Type | PDIP |
| Pin Count | 14 |
| Maximum High Level Output Current | -0.25 mA |
| Maximum Low Level Output Current | 40 mA |
| Maximum Propagation Delay Time @ Maximum CL | 30 ns @ 5 V |
| Dimensions | 19.3 x 6.35 x 4.57 mm |
| Propagation Delay Test Condition | 15 pF |
| Maximum Operating Supply Voltage | 5.25 V |
| Minimum Operating Supply Voltage | 4.75 V |
