Molex Insertion & Extraction Tool, HANDTOOL Series, Pin, Socket Contact
- RS Stock No.:
- 7106528
- Mfr. Prt No.:
- 63812-0000
- Brand:
- Molex
Legislation and Compliance
RoHS Certificate of Compliance
EU Directives 2011/65/EU and 2015/863 restrict the use of the 10 substances below in the manufacture of specified types of electrical equipment.
Whilst this restriction does not legally apply to components, it is recognised that component “compliance” is relevant to many customers.
RS definition of RoHS Compliance:
- The product does not contain any of the restricted substances in concentrations and applications banned by the Directive,
- and for components, the product is capable of being worked on at the higher temperatures required by lead–free soldering
The restricted substances and maximum allowed concentrations in the homogenous material are, by weight:
| Substance | Concentration |
| Lead | 0.1% |
| Mercury | 0.1% |
| PBB (Polybrominated Biphenyls) | 0.1% |
| PBDE ( Polybrominated Diphenyl Ethers) | 0.1% |
| Hexavalent Chromium | 0.1% |
| Cadmium | 0.01% |
| DEHP (Bis (2-Ethylhexl) phthalate) | 0.1% |
| BBP (Benzyl butyl phthalate) | 0.1% |
| DBP (Dibutyl phthalate) | 0.1% |
| DIBP (Diisobutyl phthalate) | 0.1% |
The supplier of the item listed below has informed RS Components that the product is "RoHS Compliant".
RS Components has taken all reasonable steps to confirm this statement. Information relates only to products sold on or after the date of this certificate.
| RS stock number | 7106528 |
| Product description | Molex Insertion & Extraction Tool, HANDTOOL Series, Pin, Socket Contact |
| Manufacturer / Brand | Molex |
| Manufacturer part number | 63812-0000 |
RS Components Ltd, Birchington Road, Corby, Northants, NN17 9RS, UK
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
| RS stock number | 7106528 |
| Product description | Molex Insertion & Extraction Tool, HANDTOOL Series, Pin, Socket Contact |
| Manufacturer / Brand | Molex |
| Manufacturer part number | 63812-0000 |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Nov 24, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Country of Origin: US
Product Details

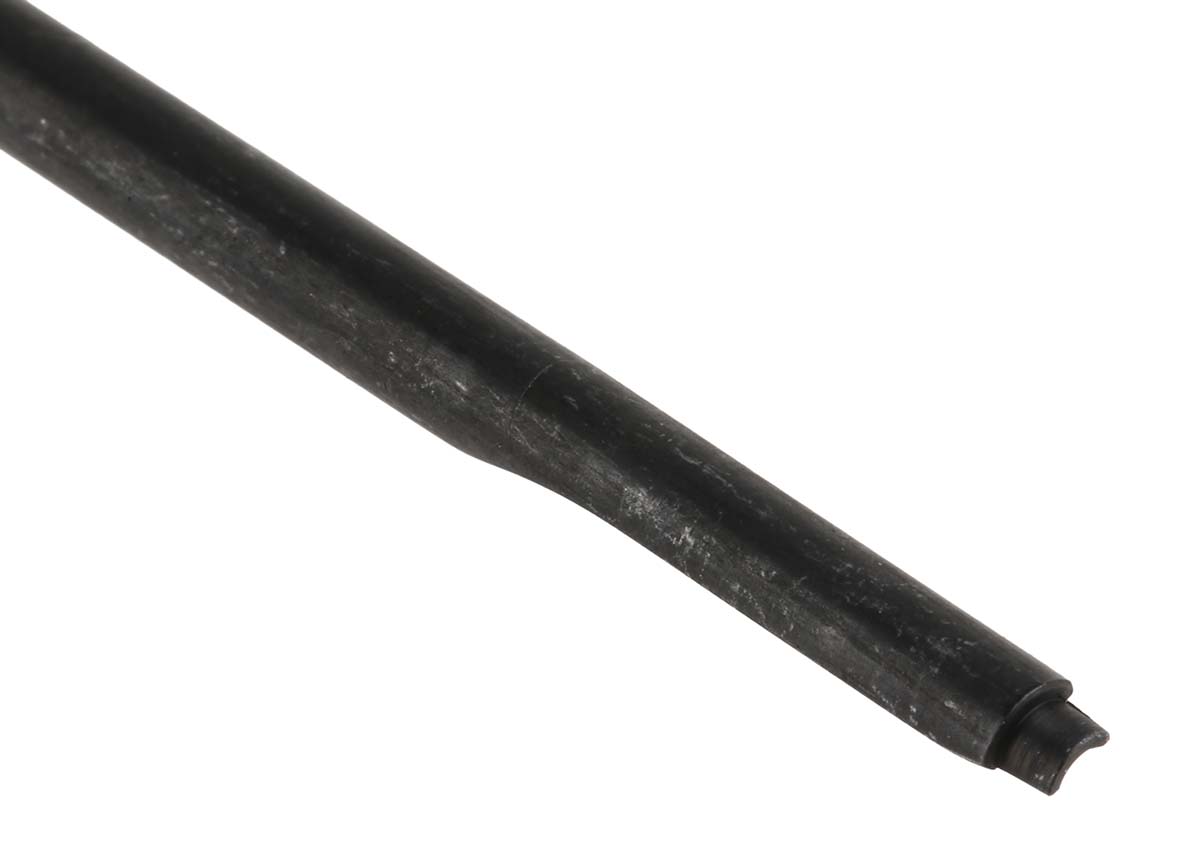

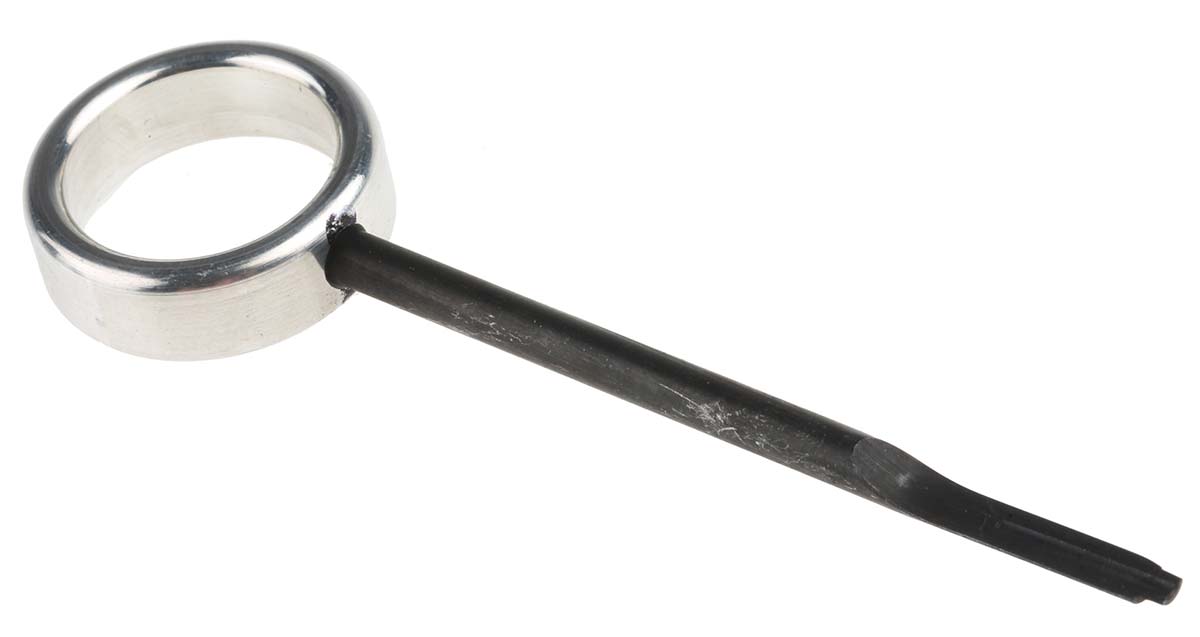

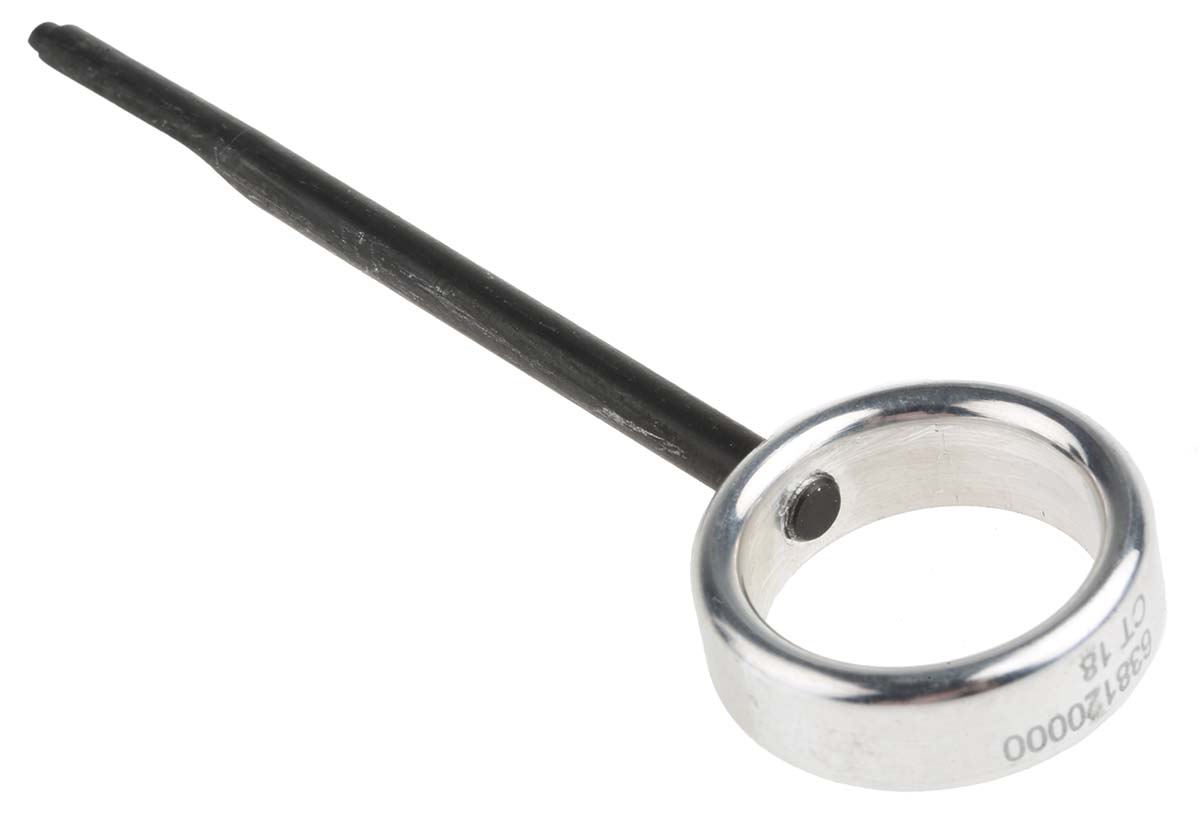

Molex Insertion & Extraction Combination Tool Pin
The Molex insertion & extraction combination tool pin is used for insertion of all KK® 2.54mm (.100”) center series contacts into all KK® 2.54mm (.100”) housings.
This tool is designed to assure proper seating of terminals and reduce operator fatigue.
With its simple to use operational instructions, this insertion and extraction tool pin proves to be an essential solution to your electrical needs.
Features
- Easy to use insertion tool which reduces operator fatigue
- Built for durability and plenty of usages.
- Compatible with the KK series by Molex
Operation
The Molex Insertion & Extraction Combination Tool supports individual terminals to be inserted into its housing. It also has the option of being able to have the terminal be partially inserted in the terminal housing first, and then the Insertion tool can be used to firmly seat the terminal.
Please refer to the Insertion Tool Instruction Sheet for further instruction on how to use the Molex insertion & extraction combination tool.
Compatibility
The Molex Insertion & Extraction Combination Tool pin is compatible with the below products
170-7029
670-6681
670-2263
172-9178
Specifications
| Attribute | Value |
| Brand | Molex |
| Contact Type | Pin, Socket |
| Series | HANDTOOL |
| Tool Type | Extraction & Insertion Tool |
