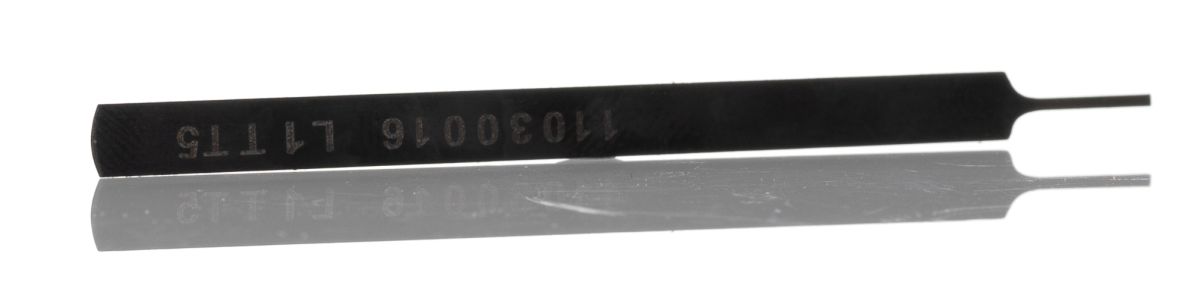

Molex Crimp Extraction Tool, HANDTOOL Series, Plug, Receptacle Contact
- RS Stock No.:
- 1733313
- Mfr. Prt No.:
- 11-03-0016
- Brand:
- Molex
Legislation and Compliance
RoHS Status: Not Applicable
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
| RS stock number | 1733313 |
| Product description | Molex Crimp Extraction Tool, HANDTOOL Series, Plug, Receptacle Contact |
| Manufacturer / Brand | Molex |
| Manufacturer part number | 11-03-0016 |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Dec 28, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Country of Origin: US
Product Details
5.08mm Molex KK Range
Crimp Tools
This KK series interconnection system provides an economical and simple method of achieving wire to board and board to board connections. Particularly suited to applications where greater creepage and clearance distance are required, the 5.08mm pitch utilises the same crimp contacts, polarising pegs and tooling as the 3.96mm pitch.
Parallel action crimp hand tools suitable for terminating Molex KK series crimp terminals
Crimp Extraction tools are also available
Specifications
| Attribute | Value |
| Brand | Molex |
| Series Number | T0201 |
| Contact Type | Plug, Receptacle |
| Series | HANDTOOL |
| Tool Type | Extraction Tool |
