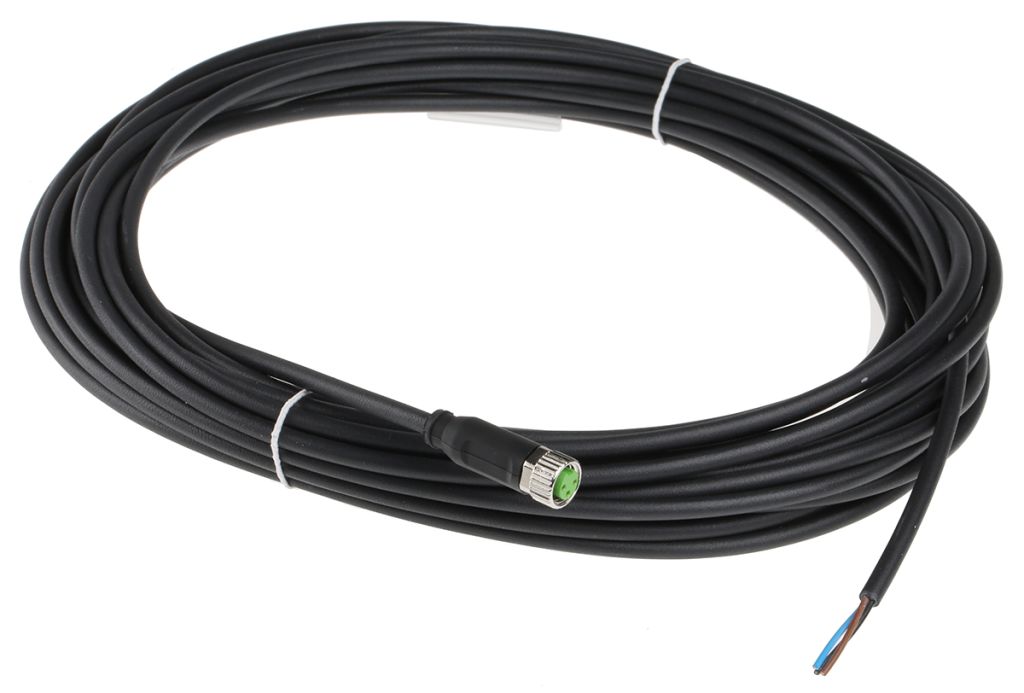

Murrelektronik Limited Straight Female M8 to Free End Sensor Actuator Cable, PUR, 10m
- RS Stock No.:
- 7975702
- Mfr. Prt No.:
- 7000-08041-6301000
- Brand:
- Murrelektronik Limited
Legislation and Compliance
RoHS Certificate of Compliance
EU Directives 2011/65/EU and 2015/863 restrict the use of the 10 substances below in the manufacture of specified types of electrical equipment.
Whilst this restriction does not legally apply to components, it is recognised that component “compliance” is relevant to many customers.
RS definition of RoHS Compliance:
- The product does not contain any of the restricted substances in concentrations and applications banned by the Directive,
- and for components, the product is capable of being worked on at the higher temperatures required by lead–free soldering
The restricted substances and maximum allowed concentrations in the homogenous material are, by weight:
| Substance | Concentration |
| Lead | 0.1% |
| Mercury | 0.1% |
| PBB (Polybrominated Biphenyls) | 0.1% |
| PBDE ( Polybrominated Diphenyl Ethers) | 0.1% |
| Hexavalent Chromium | 0.1% |
| Cadmium | 0.01% |
| DEHP (Bis (2-Ethylhexl) phthalate) | 0.1% |
| BBP (Benzyl butyl phthalate) | 0.1% |
| DBP (Dibutyl phthalate) | 0.1% |
| DIBP (Diisobutyl phthalate) | 0.1% |
The supplier of the item listed below has informed RS Components that the product is "RoHS Compliant".
RS Components has taken all reasonable steps to confirm this statement. Information relates only to products sold on or after the date of this certificate.
| RS stock number | 7975702 |
| Product description | Murrelektronik Limited Straight Female M8 to Free End Sensor Actuator Cable, PUR, 10m |
| Manufacturer / Brand | Murrelektronik Limited |
| Manufacturer part number | 7000-08041-6301000 |
RS Components Ltd, Birchington Road, Corby, Northants, NN17 9RS, UK
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
| RS stock number | 7975702 |
| Product description | Murrelektronik Limited Straight Female M8 to Free End Sensor Actuator Cable, PUR, 10m |
| Manufacturer / Brand | Murrelektronik Limited |
| Manufacturer part number | 7000-08041-6301000 |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Dec 29, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Country of Origin: DE
Product Details
MURR Elekronik Sensor - Actuator Cable Assemblies and Connectors
A comprehensive offering of M8 and M12 connector cable assemblies, distribution units, M8 and M12 connectors, fieldbus connector cable assemblies, couplers and tooling from MURR Elektronik.
Straight Sensor-Actuator M8 Connectors with Open Ended Cable
MURR Elektronik sensor-actuator M8 connectors with PUR (UL/CSA rated) cable are suitable for extremely demanding applications such as those found in machine tools, swivel tables, metal cutting and manufacturing, suitable for C-tracks if installed correctly. These M8 connector free end cable assemblies have very good resistance against chemicals, oils and lubricants, coolants and other aggressive media and are flame retardant in accordance to VDE 0472, offered in 3 pole and 4 pole versions with differing open end cable lengths to suit your particular application.
APPROVALS : cULus, cSAus, GOST
Withstands high mechanical demands
High resistance against abrasion
Hydrolysis and UV resistant
Specifications
| Attribute | Value |
| Brand | Murrelektronik Limited |
| Connector A | M8 |
| Connector B | Free End |
| Length | 10 m |
| Connector A Gender | Female |
| Connector A Number of Contacts | 3 |
| Connector A Orientation | Straight |
| Connector B Number of Contacts | 3 |
| Coding | A |
| Sheath Colour | Black |
| Sheath Material | PUR |
| Cross Sectional Area | 0.25 mm² |
| Series | 7000 |
| Connector A Housing Gender | Female |
| American Wire Gauge | 24 AWG |
| Shielding | Unshielded |
