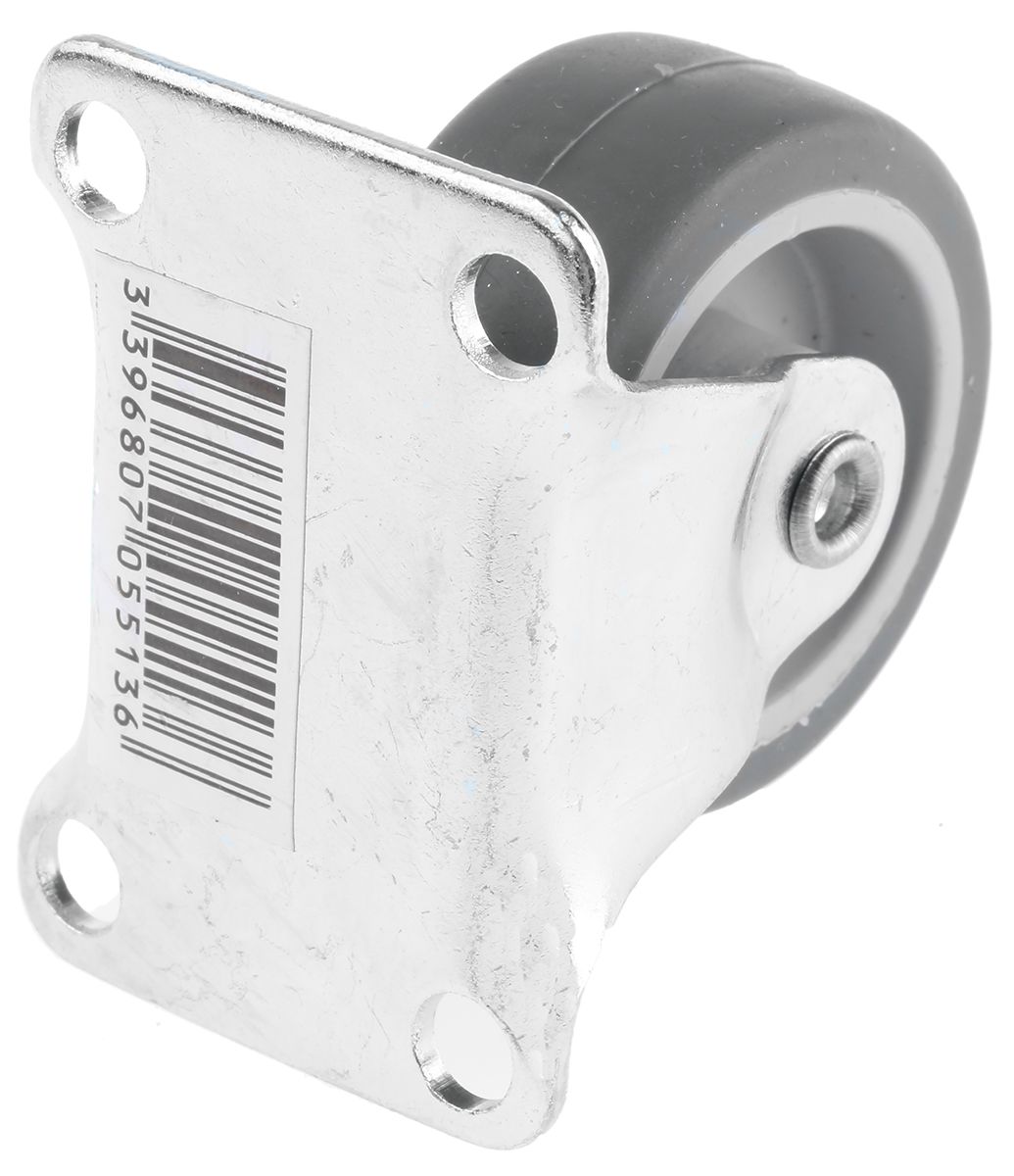

Guitel Hervieu Fixed Castor Wheel, 15kg Capacity, 42mm Wheel
- RS Stock No.:
- 3064316
- Mfr. Prt No.:
- 55131100
- Brand:
- Guitel
Legislation and Compliance
RoHS Status: Not Applicable
Statement of Conformity
RS Components
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
Compliant Product Details
RS stock number | 3064316 |
Product description | Guitel Hervieu Fixed Castor Wheel, 15kg Capacity, 42mm Wheel |
Manufacturer / Brand | Guitel |
Manufacturer part number | 55131100 |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
Date | Nov 24, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Country of Origin: FR
Product Details
Light-duty, low-diameter castors
Specifications
Attribute | Value |
Brand | Guitel |
Wheel Diameter | 42 mm |
Load Capacity | 15 kg |
Overall Height | 54 mm |
Wheel Width | 18 mm |
Fixing Plate Dimensions | 54 x 38 mm |
Rotation | Fixed |
Application | Furniture |
Tyre Material | Rubber |
Includes Brake | No |
Fixing Centres | 42 x 27 mm |
Weight Class | Light Duty |
Features | Non-Marking |
Number of Fixing Holes | 4 |
Fixing Hole Size | 6 mm |
Hub Bearing Type | Plain Bore |
Hub Material | PP |
