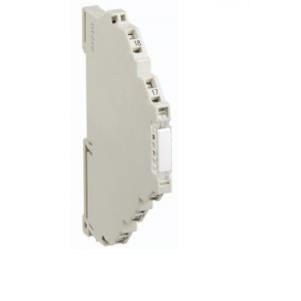

Wieland 24V dc SPST Interface Relay Module DIN Rail Mount, flare
- RS Stock No.:
- 3414840
- Mfr. Prt No.:
- 81.020.4100.0
- Brand:
- Wieland
Legislation and Compliance
RoHS Status: Not Applicable
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
| RS stock number | 3414840 |
| Product description | Wieland 24V dc SPST Interface Relay Module DIN Rail Mount, flare |
| Manufacturer / Brand | Wieland |
| Manufacturer part number | 81.020.4100.0 |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Nov 17, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Product Details
Terminal Block Timer Relay
Multifunction Timer has selectable functions; On delay, Off delay, interval timer, flashing - pause start, flashing - pulse start
Basic Timers have on-delay only
DIN rail mounting - only 6.2mm width
Plug in jumpers to link common potentials
Status LED
Marking label
Simple selection of function and time range using DIP switches on the side of the housing (Stock no. 341-4840)
Simple adjustment of time delay using potentiometer located behind marking label
Contact Material AgSnO2
Switching Voltage 250 Vac
Switch Power 1500 VA
Specifications
| Attribute | Value |
| Brand | Wieland |
| Minimum Input Voltage | 19.2 V |
| Coil Voltage | 24 V dc |
| Contact Configuration | SPST |
| Mounting Type | DIN Rail |
| Terminal Type | Spring Clamp |
| Length | 70 mm |
| Depth | 6.2 mm |
| Series | flare |
| Height | 89 mm |
| Dimensions | 70 x 6.2 x 89 mm |
| Contact Material | Silver Alloy |
| Input Current | 10 mA |
| Turn Off Time | 5 ms |
| Turn On Time | 1 ms |
| Operating Temperature Range | 0 → +50 °C |
| Standards Met | CSA, UL |
| Relay Switching Classification | Interface Relay Module |
| Number of Poles | 1 |
| Minimum Operating Temperature | 0 °C |
| Maximum Operating Temperature | +50 °C |
