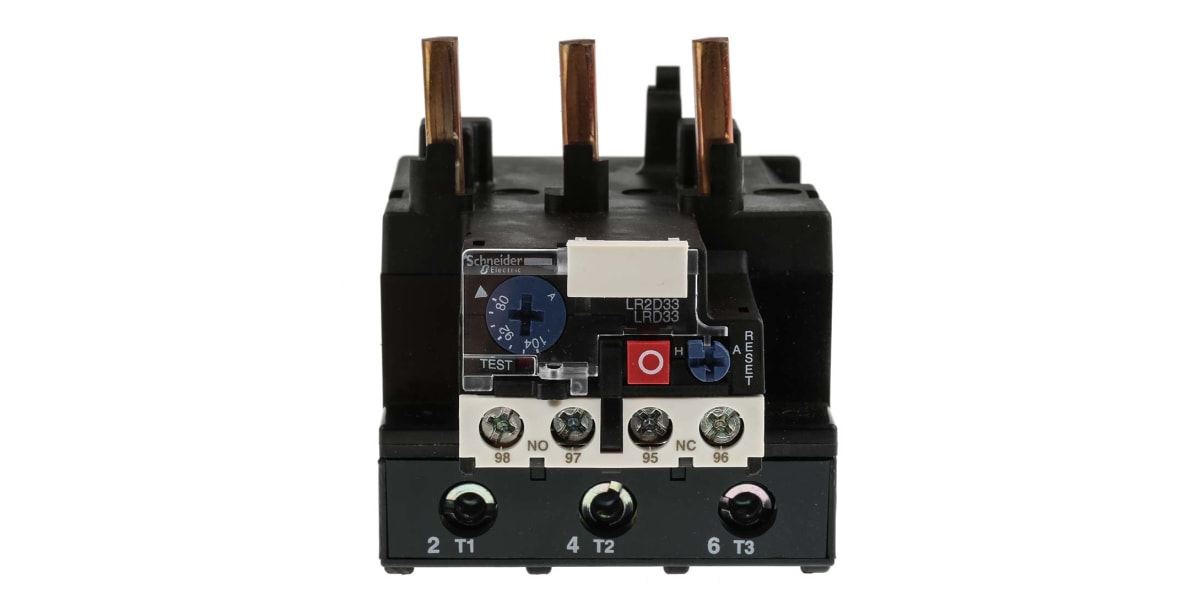

Schneider Electric Thermal Overload Relay – 1NO + 1NC, 80 → 104 A F.L.C, 104 A Contact Rating, 3P, TeSys
- RS Stock No.:
- 3949223
- Mfr. Prt No.:
- LRD3365
- Brand:
- Schneider Electric
Legislation and Compliance
RoHS Status: Not Applicable
Statement of Conformity
RS Components
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
Compliant Product Details
| RS stock number | 3949223 |
| Product description | Schneider Electric Thermal Overload Relay - 1NO + 1NC, 80 → 104 A F.L.C, 104 A Contact Rating, 3P, TeSys |
| Manufacturer / Brand | Schneider Electric |
| Manufacturer part number | LRD3365 |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Nov 25, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Country of Origin: FR
Product Details
Schneider Electric TeSys LRD Thermal Overload Relays
Specifications
| Attribute | Value |
| Brand | Schneider Electric |
| FLC Motor Rating | 80 → 104 A |
| Range | TeSys |
| Reset Method | Automatic, Manual |
| Series | LRD |
| Contact Voltage Rating | 690 V ac |
| Normal State Configuration | 1NO + 1NC |
| Mounting Style | Direct Contactor |
| Depth | 123 mm |
| Length | 236 mm |
| Maximum Operating Temperature | +60 °C |
| Contact Current Rating | 104 A |
| Minimum Operating Temperature | -20 °C |
| Number Of Auxiliary Contacts | 2 |
| Operating Temperature Range | -20 → +60 °C |
| Pole Configuration | 3P |
| Width | 55 mm |
| Terminal Type | Screw |
