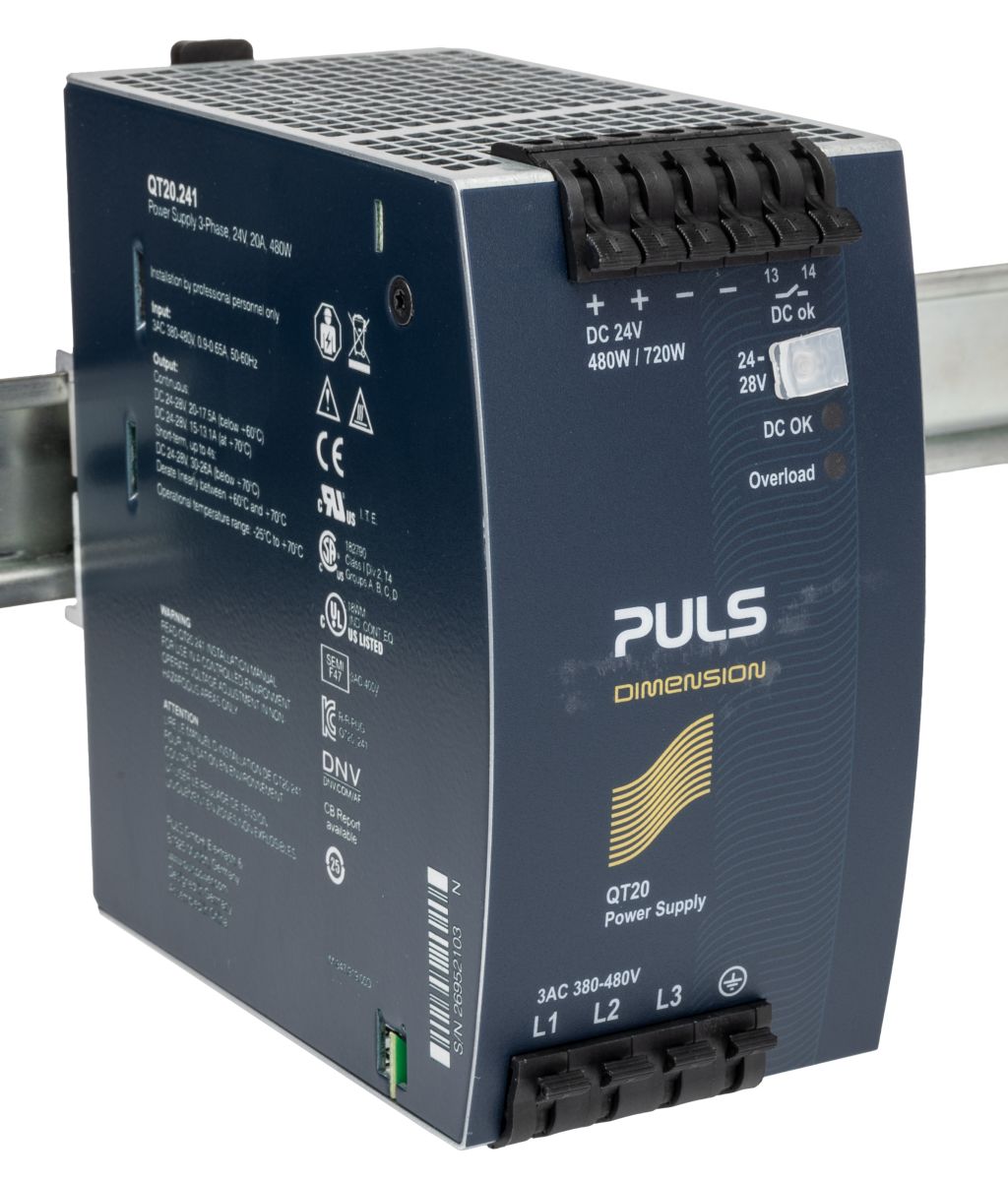

PULS DIMENSION Q Switch Mode DIN Rail Power Supply 380 → 480V ac Input, 24V dc Output, 20A 480W
- RS Stock No.:
- 5145603
- Mfr. Prt No.:
- QT20.241
- Brand:
- PULS
Legislation and Compliance
RoHS Status: Not Applicable
Statement of Conformity
RS Components
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
Compliant Product Details
| RS stock number | 5145603 |
| Product description | PULS DIMENSION Q Switch Mode DIN Rail Power Supply 380 → 480V ac Input, 24V dc Output, 20A 480W |
| Manufacturer / Brand | PULS |
| Manufacturer part number | QT20.241 |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Nov 13, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Country of Origin: CZ
Product Details
Specifications
| Attribute | Value |
| Brand | PULS |
| AC or DC Input Voltage | ac |
| AC or DC Output Voltage | dc |
| Input Voltage | 380 → 480 V ac |
| Output Voltage | 24 V dc |
| Output Current | 20 A |
| Power Rating | 480 W |
| Number of Outputs | 1 |
| Electrical Phase | 3 |
| Type | Switch Mode |
| Height | 124 mm |
| Width | 65 mm |
| Maximum Temperature | +70 °C |
| Series | DIMENSION Q |
| Depth | 127 mm |
| Minimum Temperature | -25 °C |
| MTBF | 1194000 h |
| Load Regulation | 100 mV |
| Mounting Type | DIN Rail Mount |
| Ripple And Noise | 100 mV Pk-Pk |
