RS PRO Stainless Steel Single Non Return Valve 1-1/4 in BSP

RS Stock No.:
4992666
Brand:
RS PRO

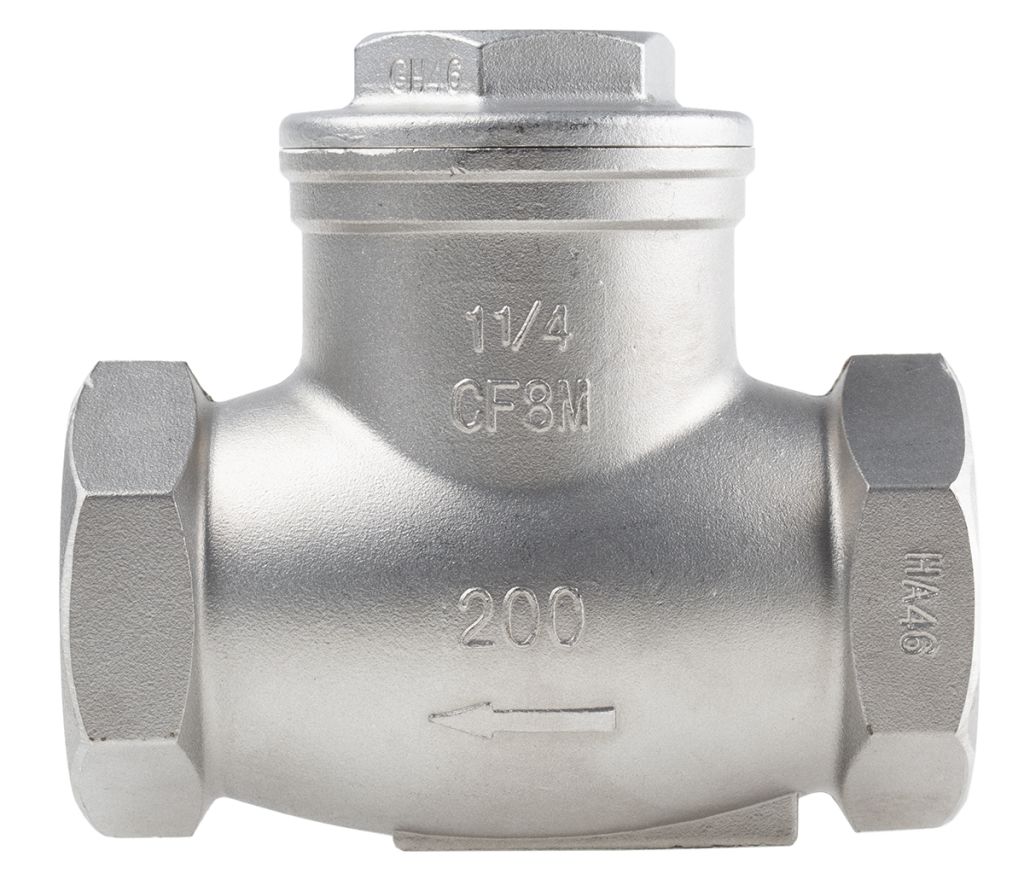

Product image for S/steel swing check valve,1 1/4in BSP F
Product image for S/STEEL SWING CHECK VALVE,1 1/4IN BSP F
Product image for S/steel swing check valve,1 1/4in BSP F
Product image for S/steel swing check valve,1 1/4in BSP F
Product image for S/steel swing check valve,1 1/4in BSP F
Product image for S/steel swing check valve,1 1/4in BSP F

Legislation and Compliance

RoHS Status: Not Applicable

Statement of Conformity

RS Components
Statement of Conformity

This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.

Compliant Product Details
RS stock number 4992666
Product description RS PRO Stainless Steel Single Non Return Valve 1-1/4 in BSP
Manufacturer / Brand RS PRO

The foregoing information relates to product sold on, or after, the date shown below.

RS COMPONENTS

Date Nov 20, 2024

RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132

Country of Origin: CN

Product Details

Non Return/Check Valves - Swing Type

Non-return or check valves which allow flow in one direction only.

CF8M Stainless Steel Check Valves

RS Pro Brand Screwed End Swing Check Valves that allow liquids to flow in only one direction.

Features:

1/2 - 3" (DN15 - DN80)
W.P: 200 WOG
W.T: -20°C - 200°C (-4°F - 392°F)
Investment casting
Socket weld (option)
Thread type: ASME B1.20.1 (NPT), DIN 2999 & BS21, ISO7/1 & EN10226

Material:

Body, Cap & Disc - ASTM A351-CF8M
Seal & Gasket - PTFE
Plug - AISI 316
Bolt - AISI 304

L4992666-01

Specifications

Attribute Value
Brand RS PRO
Connection 1-1/4 in BSP
Thread Standard BSP
Maximum Working Pressure 14 bar
Thread Size 1-1/4 in
Type Single
Body Material Stainless Steel
Product image for S/steel swing check valve,1 1/4in BSP F
Product image for S/STEEL SWING CHECK VALVE,1 1/4IN BSP F
Product image for S/steel swing check valve,1 1/4in BSP F
Product image for S/steel swing check valve,1 1/4in BSP F
Product image for S/steel swing check valve,1 1/4in BSP F
Product image for S/steel swing check valve,1 1/4in BSP F
Checking stock...
VND
1,397,938.08
Out of stock
Price Each
Unit(s)Per Unit(VND)
11,397,938.08
