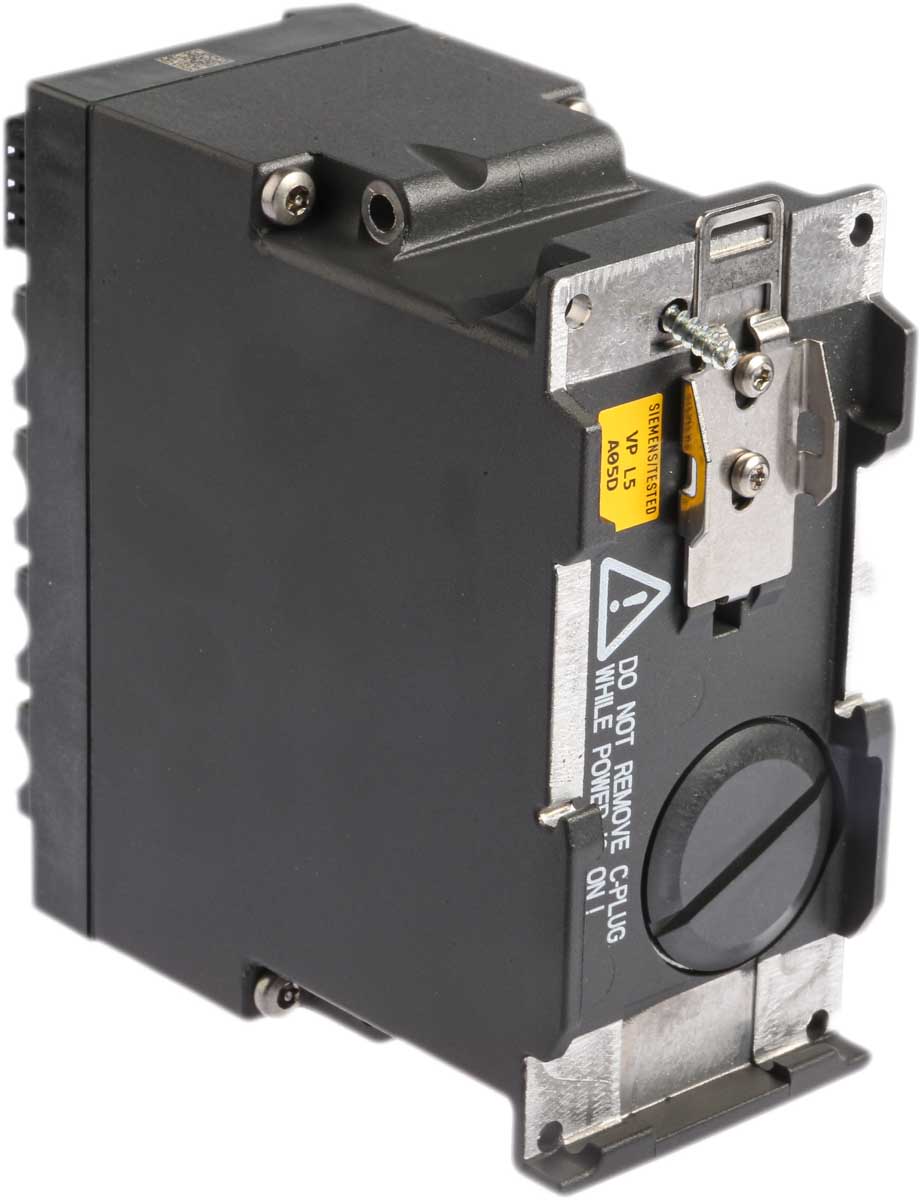

Siemens Ethernet Switch, 4 RJ45 port, 24V dc, 10/100Mbit/s Transmission Speed, DIN Rail, Wall Mount
- RS Stock No.:
- 8487622
- Mfr. Prt No.:
- 6GK5204-2BB10-2AA3
- Brand:
- Siemens
Legislation and Compliance
RoHS Status: Not Applicable
Statement of Conformity
RS Components
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
Compliant Product Details
| RS stock number | 8487622 |
| Product description | Siemens Ethernet Switch, 4 RJ45 port, 24V dc, 10/100Mbit/s Transmission Speed, DIN Rail, Wall Mount |
| Manufacturer / Brand | Siemens |
| Manufacturer part number | 6GK5204-2BB10-2AA3 |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Nov 13, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Country of Origin: DE
Product Details
Specifications
| Attribute | Value |
| Brand | Siemens |
| Width | 60 mm |
| Nominal Supply Voltage | 24 V dc |
| Minimum Supply Voltage | 18 V dc |
| Depth | 124 mm |
| Transmission Speed | 10/100 Mbit/s |
| Mounting | DIN Rail, Wall |
| Maximum Supply Voltage | 32 V dc |
| RJ45 Ports | 4 |
| Dimensions | 60 x 124 x 125 mm |
| Maximum Operating Temperature | +60 °C |
| Weight | 780 g |
| Height | 125 mm |
| Minimum Operating Temperature | -40 °C |
