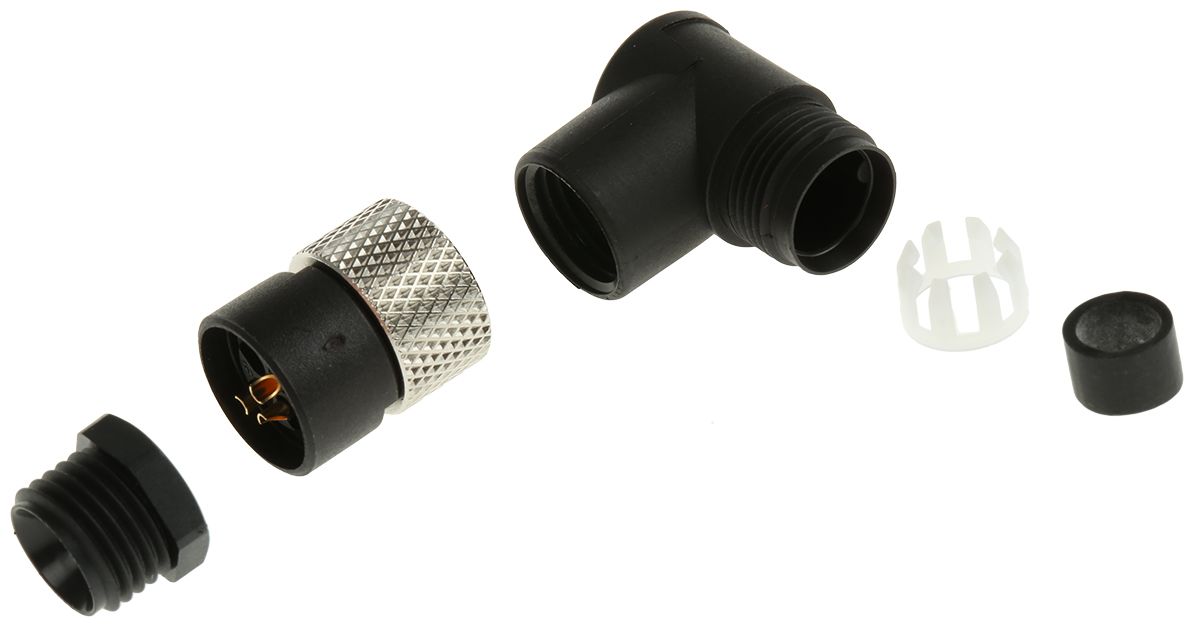

Binder Cable Mount Connector, 3 Contacts, M8 Connector, Socket
- RS Stock No.:
- 3115981
- Mfr. Prt No.:
- 99 3402 00 03
- Brand:
- Binder
Legislation and Compliance
RoHS Status: Not Applicable
Statement of Conformity
RS Components
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
Compliant Product Details
| RS stock number | 3115981 |
| Product description | Binder Cable Mount Connector, 3 Contacts, M8 Connector, Socket |
| Manufacturer / Brand | Binder |
| Manufacturer part number | 99 3402 00 03 |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Sep 20, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Country of Origin: DE
Product Details
Plugs and Sockets M8 x 1, 768 Series
Specifications
| Attribute | Value |
| Brand | Binder |
| Number of Contacts | 3 |
| Mounting Type | Cable Mount |
| Connector Size | M8 |
| Plug/Socket | Socket |
| Termination Method | Solder |
| IP Rating | IP67 |
| Contact Gender | Female |
| Current Rating | 4.0 A |
| Shell Size | 12 |
| Voltage Rating | 60 V |
| Mating Type | Screw On |
| Body Orientation | Right Angle |
| Series | 768 |
| Housing Material | Polymer |
| Contact Plating | Gold |
| Contact Material | Bronze |
| Maximum Operating Temperature | +85 °C |
| Minimum Operating Temperature | -25 °C |
