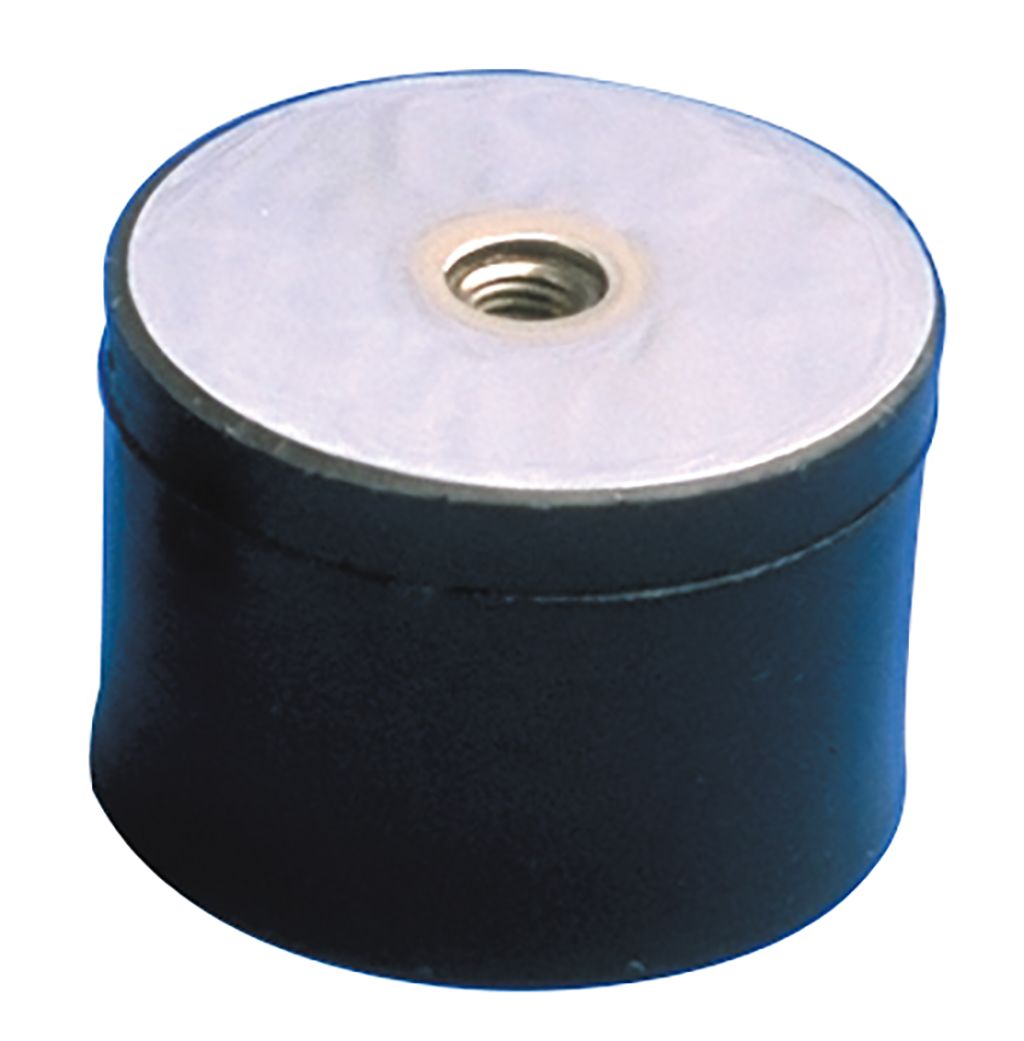

Paulstra Hutchinson M6 Anti Vibration Mount, Female Buffer Foot with 25daN Compression Load

RS Stock No.:
3851643
Mfr. Prt No.:
520508
Brand:
Paulstra Hutchinson

Legislation and Compliance

RoHS Status: Not Applicable

Statement of Conformity

RS Components
Statement of Conformity

This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.

Compliant Product Details
RS stock number 3851643
Product description Paulstra Hutchinson M6 Anti Vibration Mount, Female Buffer Foot with 25daN Compression Load
Manufacturer / Brand Paulstra Hutchinson
Manufacturer part number 520508

The foregoing information relates to product sold on, or after, the date shown below.

RS COMPONENTS

Date Nov 13, 2024

RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132

Country of Origin: FR


Product Details

Radiaflex® plugs with threaded holes

LF295171-10

Specifications

Attribute Value
Brand Paulstra Hutchinson
Anti Vibration Mount Type Female Buffer Foot
Thread Size M6
Diameter 20 mm
Overall Height 30 mm
Material Natural Rubber
Compression Load 25 daN
Compression Deflection 7 mm
Maximum Operating Temperature +70 °C
Metalwork Steel
Type Female to Female
Shearing Load 4.5 daN
