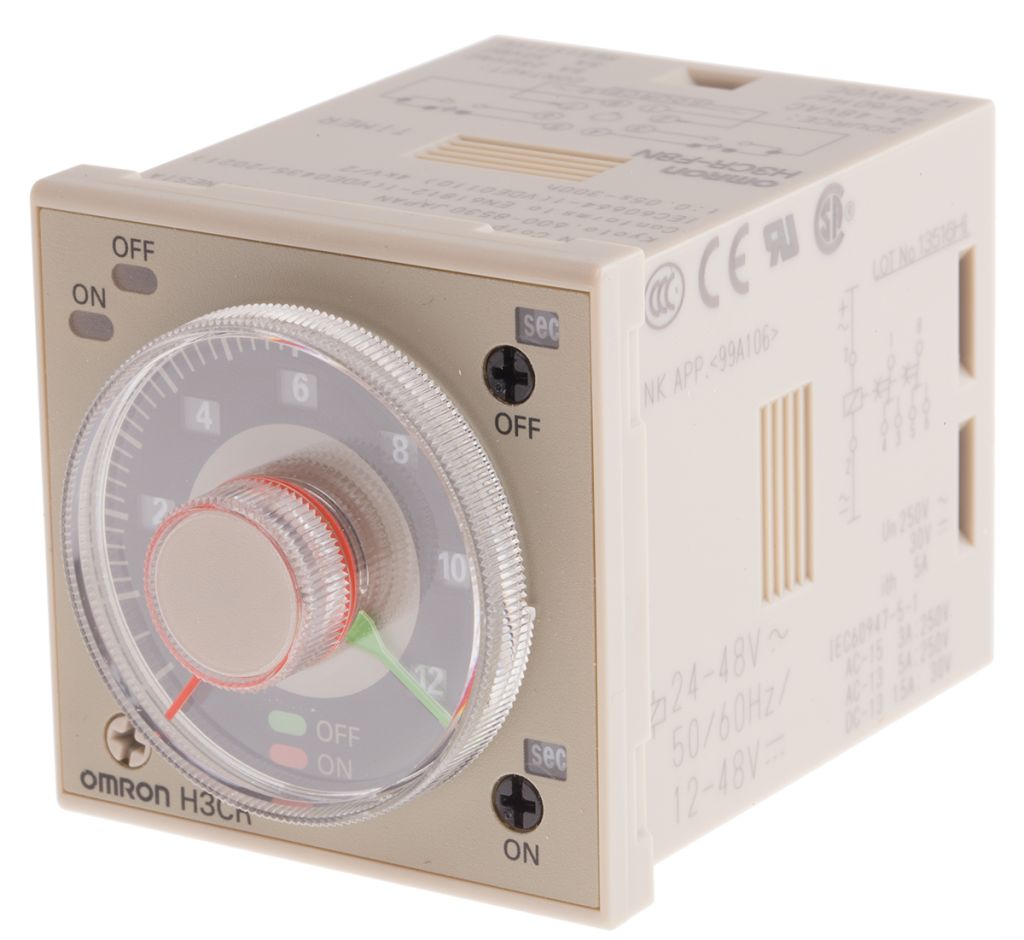

Omron Multi Function Timer Relay, Flicker ON Start, 12 → 48 V dc, 24 → 48V ac, DIN Rail Mount
- RS Stock No.:
- 8088676
- Mfr. Prt No.:
- H3CR-F8N AC24-48/DC12-48
- Brand:
- Omron
Legislation and Compliance
RoHS Status: Not Applicable
Statement of Conformity
RS Components
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
Compliant Product Details
| RS stock number | 8088676 |
| Product description | Omron Multi Function Timer Relay, Flicker ON Start, 12 → 48 V dc, 24 → 48V ac, DIN Rail Mount |
| Manufacturer / Brand | Omron |
| Manufacturer part number | H3CR-F8N AC24-48/DC12-48 |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Nov 24, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Product Details
Specifications
| Attribute | Value |
| Brand | Omron |
| Supply Voltage | 12 → 48 V dc, 24 → 48 V ac |
| Minimum Voltage | 12 V dc, 24 V ac |
| Minimum Operating Temperature | -10 °C |
| Mode of Operation | Flicker ON Start |
| Series | H3CR |
| Maximum Voltage | 48 V ac/dc |
| Depth | 53 mm |
| Length | 48 mm |
| Width | 44.8 mm |
| Terminal Type | 8-Pin Connector |
| Mounting Type | DIN Rail |
| Number of Timer Functions | Multi Function |
| Switch Configuration | DPDT |
| Maximum Operating Temperature | +55 °C |
