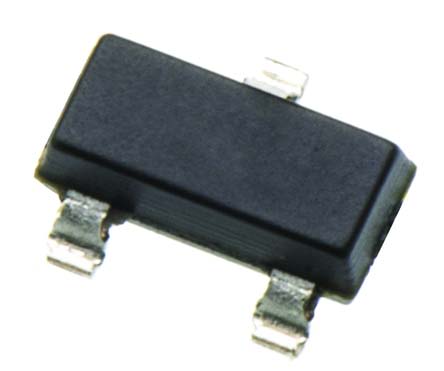

onsemi BC846BLG NPN Transistor, 100 mA, 65 V, 3-Pin SOT-23
- RS Stock No.:
- 7737611
- Mfr. Prt No.:
- BC846BLT3G
- Brand:
- ON Semiconductor
Legislation and Compliance
RoHS Status: Not Applicable
Statement of Conformity
RS Components
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
Compliant Product Details
| RS stock number | 7737611 |
| Product description | onsemi BC846BLG NPN Transistor, 100 mA, 65 V, 3-Pin SOT-23 |
| Manufacturer / Brand | ON Semiconductor |
| Manufacturer part number | BC846BLT3G |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Dec 26, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Product Details
Small Signal NPN Transistors, ON Semiconductor
Specifications
| Attribute | Value |
| Brand | ON Semiconductor |
| Maximum Power Dissipation | 300 mW |
| Number of Elements per Chip | 1 |
| Maximum Collector Base Voltage | 80 V |
| Mounting Type | Surface Mount |
| Transistor Configuration | Single |
| Maximum Emitter Base Voltage | 6 V |
| Package Type | SOT-23 |

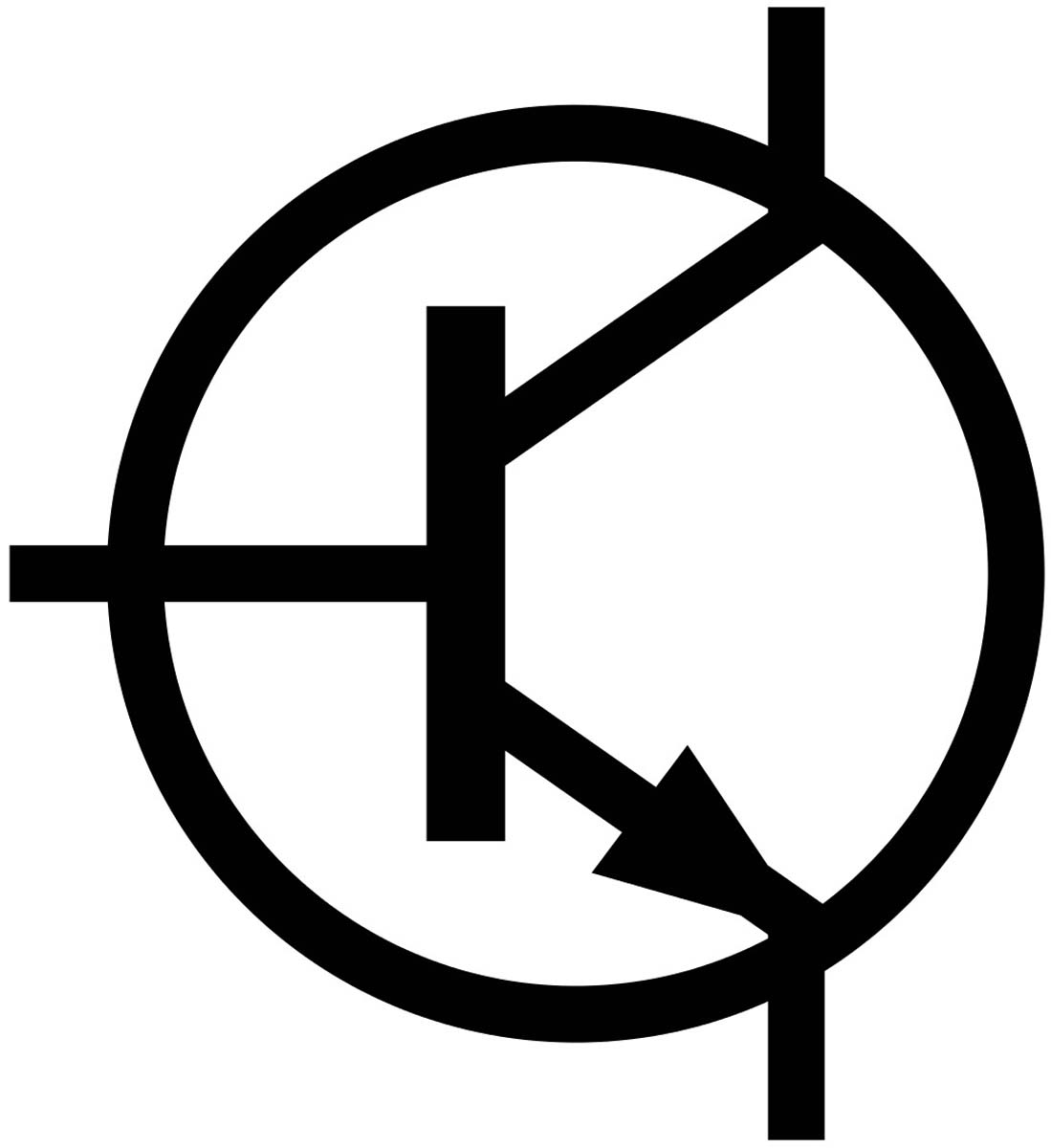

| Transistor Type | NPN |
| Maximum DC Collector Current | 100 mA |
| Dimensions | 2.9 x 1.3 x 1.0 mm |
| Pin Count | 3 |
| Maximum Operating Frequency | 100 MHz |
| Maximum Collector Emitter Voltage | 65 V |
| Maximum Operating Temperature | +150 °C |
