Weller Zero Smog TL KIT-2 FN, 230V ac Solder Fume Extractor, 120W, Type C – EuroPlug to Type G – British 3-pin
- RS Stock No.:
- 1240175
- Mfr. Prt No.:
- FT91017699N
- Brand:
- Weller
Legislation and Compliance
RoHS Certificate of Compliance
EU Directives 2011/65/EU and 2015/863 restrict the use of the 10 substances below in the manufacture of specified types of electrical equipment.
Whilst this restriction does not legally apply to components, it is recognised that component “compliance” is relevant to many customers.
RS definition of RoHS Compliance:
- The product does not contain any of the restricted substances in concentrations and applications banned by the Directive,
- and for components, the product is capable of being worked on at the higher temperatures required by lead–free soldering
The restricted substances and maximum allowed concentrations in the homogenous material are, by weight:
| Substance | Concentration |
| Lead | 0.1% |
| Mercury | 0.1% |
| PBB (Polybrominated Biphenyls) | 0.1% |
| PBDE ( Polybrominated Diphenyl Ethers) | 0.1% |
| Hexavalent Chromium | 0.1% |
| Cadmium | 0.01% |
| DEHP (Bis (2-Ethylhexl) phthalate) | 0.1% |
| BBP (Benzyl butyl phthalate) | 0.1% |
| DBP (Dibutyl phthalate) | 0.1% |
| DIBP (Diisobutyl phthalate) | 0.1% |
The supplier of the item listed below has informed RS Components that the product is "RoHS Compliant".
RS Components has taken all reasonable steps to confirm this statement. Information relates only to products sold on or after the date of this certificate.
| RS stock number | 1240175 |
| Product description | Weller Zero Smog TL KIT-2 FN, 230V ac Solder Fume Extractor, 120W, Type C - EuroPlug to Type G - British 3-pin |
| Manufacturer / Brand | Weller |
| Manufacturer part number | FT91017699N |
RS Components Ltd, Birchington Road, Corby, Northants, NN17 9RS, UK
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
| RS stock number | 1240175 |
| Product description | Weller Zero Smog TL KIT-2 FN, 230V ac Solder Fume Extractor, 120W, Type C - EuroPlug to Type G - British 3-pin |
| Manufacturer / Brand | Weller |
| Manufacturer part number | FT91017699N |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Dec 27, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Country of Origin: HU
Product Details
Weller TL Kit 2 Zero Smog Soldering Fume Extraction Kit with Funnel Nozzle.
Weller Zero Smog TL fume extraction Kit 2, funnel nozzle, is a low noise soldering fume extraction unit, filtering solder fumes providing you with pure breathable air in your workplace. The TL solder fume extractor has a large filter surface plus the maintenance-free brushless blower. The blower gives you an extraction volume of 190 m3/h with a strong vacuum of 3000 Pa. The extraction unit is quiet and includes an automatic filter monitoring system with an audio-visual filter alarm. As the unit is portable, it can be positioned where you need it plus the easy click extraction arms provide flexibility. The TL Zero Smog unit can be used for up to two workplaces and the filters can be changed quickly with ease. The kit includes the TL fume extraction unit, flexible adjustable extraction arms, ALFA sloped nozzles, fixing clamps and a remote switch.
FEATURES and BENEFITS:
Unit for up to 2 work places
Quick and easy installation
Easy click system
Low noise levels
Quick and easy filter replacement
Audio-visual filter change alarm system
Variable speed settings
Active carbon foam filter for effective gas cleaning
Maintenance-free
Brushless EC blower
KIT CONTENTS:

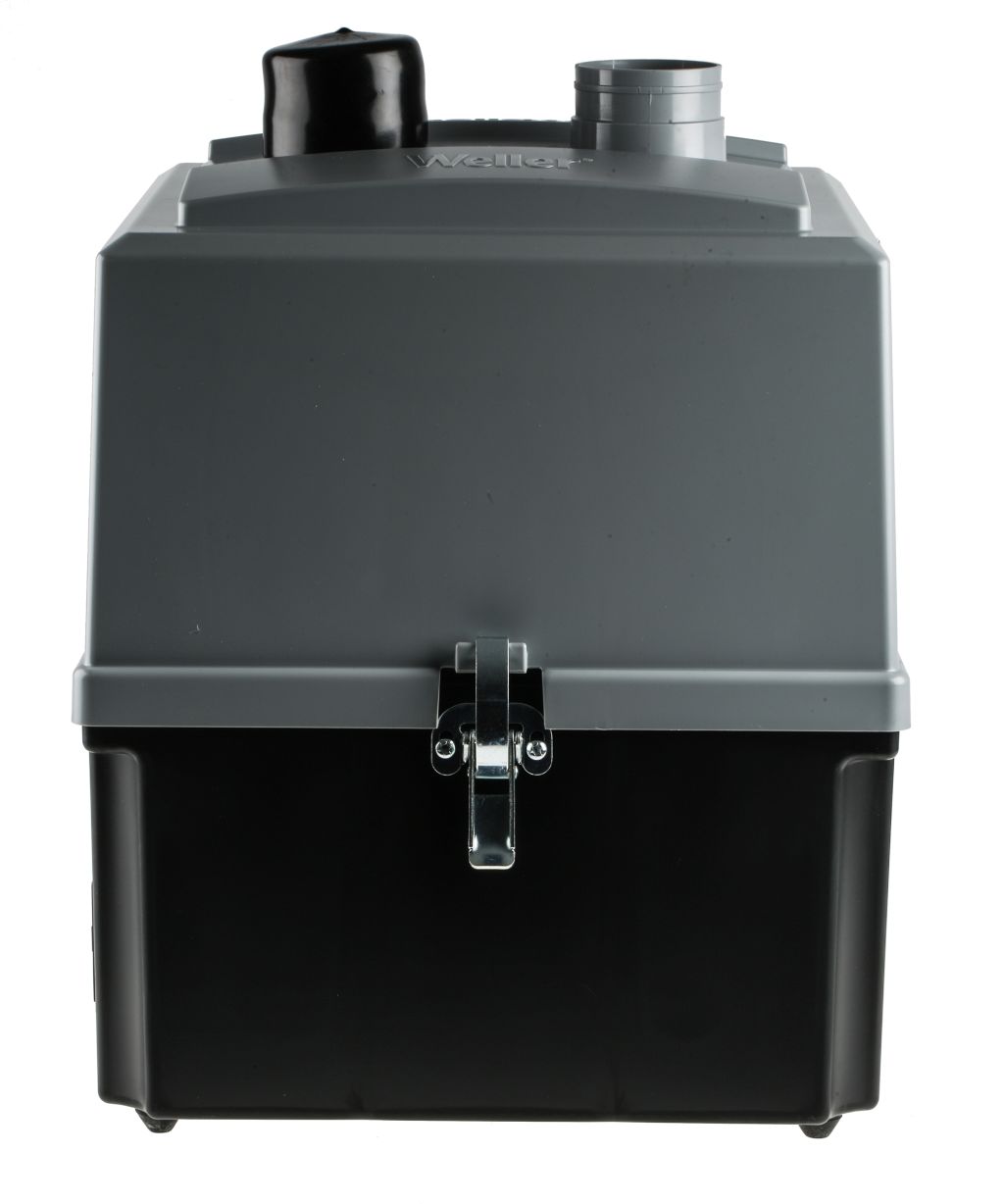

Zero Smog TL Solder fume extraction unit
2 x Flexible, adjustable fume extraction arms, length 1.5 m and 60 mm diameter
2 x ALFA funnel nozzles
2 x Fixing clamps for the soldering fume extraction arms

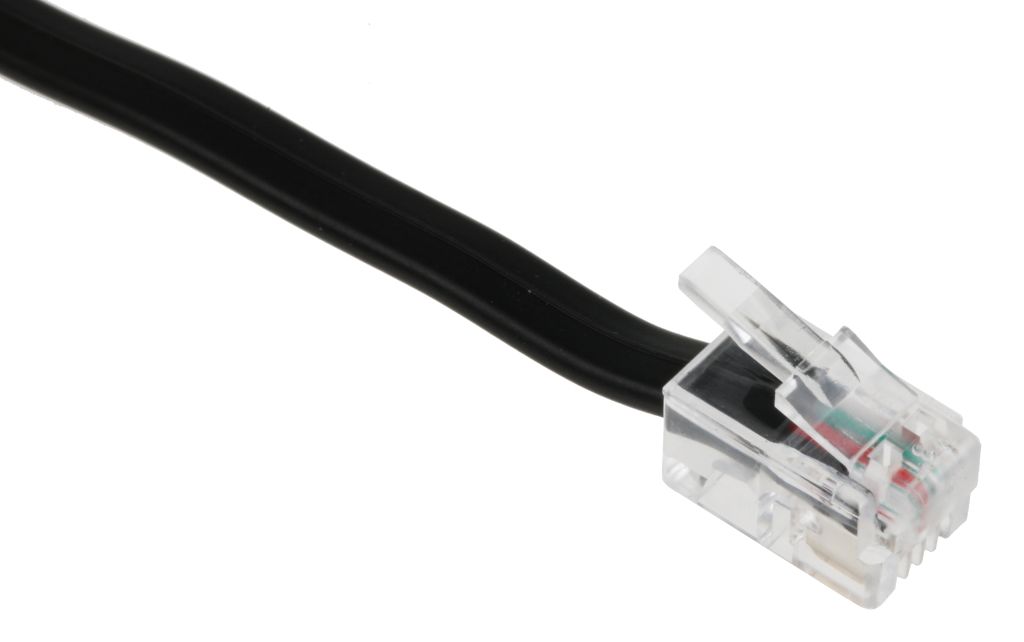

Remote switch
SPECIFICATION:
Length 335 mm
Width 330 mm
Height 445 mm
Weight 9 kg
Voltage 230 V, 50 Hz and 120 V, 60 Hz
Noise level 50 db (A)
Electrical power 120 W
Maximum blower vacuum in Pa – 3000
Maximum blower extraction rate 190 m3/h
Pre-filter is an F7 fine dust filter
Compact filter is a H13 particle filter plus a gas filter (10% carbon foam filter)
Specifications
| Attribute | Value |
| Brand | Weller |
| Pre Filter Type | F7 96% @ 2 microns |
| Remote Control | Yes |
| Main Filter Type | H13 99.75% |
| Width | 335 mm |
| Filter Full Alarm | Yes |
| ESD Safe | Yes |
| Plug Type | Type C - EuroPlug to Type G - British 3-pin |
| Maximum Airflow Rate | 190 m³/h |
| Speed Setting | Yes |
| Depth | 360 mm |
| Maximum Users | 2 |
| Wattage | 120 W |
| Voltage Rating | 230 V ac |
| Model Number | Zero Smog TL KIT-2 FN |
| Height | 445 mm |
| Extraction Type | Volume |
| Noise Level | 50 dB(A) |
